7YMGFVR 弧型 7字型端面切槽刀
產品特點
型號 : 7YMGFVR
弧型 7字型端面切槽刀, 有多種尺寸可供選擇弧型 7字型端面切槽刀
弧型 7字型端面切槽刀

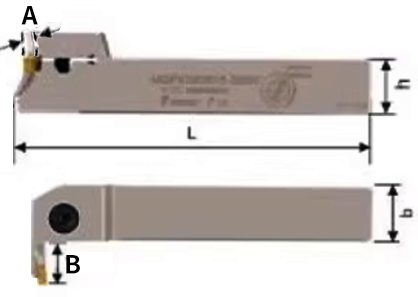

| 編號 | 20方柄 規 格 | 直徑 | A寬*B切深 | 柄徑 |
| 37YMGFVR2001 | MGFV220R正 | 20~36 | 2寬*切深10 | 20方柄 |
| 37YMGFVR2002 | MGFV220R正 | 30~50 | 2寬*切深10 | |
| 37YMGFVR2003 | MGFV220R正 | 40~60 | 2寬*切深10 | |
| 37YMGFVR2004 | MGFV220R正 | 50~80 | 2寬*切深10 | |
| 37YMGFVR2005 | MGFV220R正 | 70~120 | 2寬*切深10 | |
| 37YMGFVR2006 | MGFV220R正 | 80~160 | 2寬*切深10 | |
| 37YMGFVR2007 | MGFV220R正 | 100~220 | 2寬*切深10 | |
| 37YMGFVR2008 | MGFV220R正 | 200~800 | 2寬*切深10 | |
| 37YMGFVR2009 | MGFV2.520R正 | 20~36 | 2.5寬*切深10 | |
| 37YMGFVR2010 | MGFV2.520R正 | 50~80 | 2.5寬*切深10 | |
| 37YMGFVR2011 | MGFV2.520R正 | 50~80 | 2.5寬*切深15 | |
| 37YMGFVR2012 | MGFV2.520R正 | 100~220 | 2.5寬*切深10 | |
| 37YMGFVR2013 | MGFV320R正 | 20~36 | 3寬*切深10 | |
| 37YMGFVR2014 | MGFV320R正 | 20~36 | 3寬*切深15 | |
| 37YMGFVR2015 | MGFV320R正 | 24~36 | 3寬*切深13 | |
| 37YMGFVR2016 | MGFV320R正 | 24~36 | 3寬*切深18 | |
| 37YMGFVR2017 | MGFV320R正 | 30~50 | 3寬*切深10 | |
| 37YMGFVR2018 | MGFV320R正 | 30~50 | 3寬*切深15 | |
| 37YMGFVR2019 | MGFV320R正 | 30~50 | 3寬*切深18 | |
| 37YMGFVR2020 | MGFV320R正 | 48~66 | 3寬*切深15 | |
| 37YMGFVR2021 | MGFV320R正 | 50~80 | 3寬*切深5 | |
| 37YMGFVR2022 | MGFV320R正 | 50~80 | 3寬*切深10 | |
| 37YMGFVR2023 | MGFV320R正 | 50~80 | 3寬*切深15 | |
| 37YMGFVR2024 | MGFV320R正 | 50~80 | 3寬*切深18 | |
| 37YMGFVR2025 | MGFV320R正 | 64~100 | 3寬*切深15 | |
| 37YMGFVR2026 | MGFV320R正 | 80~160 | 3寬*切深10 | |
| 37YMGFVR2027 | MGFV320R正 | 80~160 | 3寬*切深15 | |
| 37YMGFVR2028 | MGFV320R正 | 80~160 | 3寬*切深18 | |
| 37YMGFVR2029 | MGFV320R正 | 100~200 | 3寬*切深15 | |
| 37YMGFVR2030 | MGFV320R正 | 160~400 | 3寬*切深10 | |
| 37YMGFVR2031 | MGFV320R正 | 160~400 | 3寬*切深15 | |
| 37YMGFVR2032 | MGFV320R正 | 160~400 | 3寬*切深18 | |
| 37YMGFVR2033 | MGFV320R正 | 200~800 | 3寬*切深10 | |
| 37YMGFVR2034 | MGFV320R正 | 200~800 | 3寬*切深15 | |
| 37YMGFVR2035 | MGFV420R正 | 20~36 | 4寬*切深10 | |
| 37YMGFVR2036 | MGFV420R正 | 20~36 | 4寬*切深15 | |
| 37YMGFVR2037 | MGFV420R正 | 24~36 | 4寬*切深13 | |
| 37YMGFVR2038 | MGFV420R正 | 25~35 | 4寬*切深15 | |
| 37YMGFVR2039 | MGFV420R正 | 24~36 | 4寬*切深18 | |
| 37YMGFVR2040 | MGFV420R正 | 30~50 | 4寬*切深10 | |
| 37YMGFVR2041 | MGFV420R正 | 30~50 | 4寬*切深15 | |
| 37YMGFVR2042 | MGFV420R正 | 30~50 | 4寬*切深18 | |
| 37YMGFVR2043 | MGFV420R正 | 48~66 | 4寬*切深15 | |
| 37YMGFVR2044 | MGFV420R正 | 50~80 | 4寬*切深10 | |
| 37YMGFVR2045 | MGFV420R正 | 50~80 | 4寬*切深15 | |
| 37YMGFVR2046 | MGFV420R正 | 50~80 | 4寬*切深18 | |
| 37YMGFVR2047 | MGFV420R正 | 64~100 | 4寬*切深15 | |
| 37YMGFVR2048 | MGFV420R正 | 80~160 | 4寬*切深10 | |
| 37YMGFVR2049 | MGFV420R正 | 80~160 | 4寬*切深15 | |
| 37YMGFVR2050 | MGFV420R正 | 80~160 | 4寬*切深18 | |
| 37YMGFVR2051 | MGFV420R正 | 100~200 | 4寬*切深15 | |
| 37YMGFVR2052 | MGFV420R正 | 160~400 | 4寬*切深10 | |
| 37YMGFVR2053 | MGFV420R正 | 160~400 | 4寬*切深15 | |
| 37YMGFVR2054 | MGFV420R正 | 160~400 | 4寬*切深18 | |
| 37YMGFVR2055 | MGFV420R正 | 200~800 | 4寬*切深10 | |
| 37YMGFVR2056 | MGFV420R正 | 200~800 | 4寬*切深15 | |
| 37YMGFVR2057 | MGFV520R正 | 30~50 | 5寬*切深15 | |
| 37YMGFVR2058 | MGFV520R正 | 50~80 | 5寬*切深15 | |
| 37YMGFVR2059 | MGFV520R正 | 80~160 | 5寬*切深15 | |
| 37YMGFVR2060 | MGFV520R正 | 160~400 | 5寬*切深15 | |
| 37YMGFVR2061 | MGFV520R正 | 200~800 | 5寬*切深15 | |
| 編號 | 25方柄 規 格 | 直徑 | 寬*切深 | 柄徑 |
| 37YMGFVR2501 | MGFV225R正 | 20~36 | 2寬*切深10 | 25方柄 |
| 37YMGFVR2502 | MGFV225R正 | 30~50 | 2寬*切深10 | |
| 37YMGFVR2503 | MGFV225R正 | 40~60 | 2寬*切深10 | |
| 37YMGFVR2504 | MGFV225R正 | 50~80 | 2寬*切深10 | |
| 37YMGFVR2505 | MGFV225R正 | 70~120 | 2寬*切深10 | |
| 37YMGFVR2506 | MGFV225R正 | 80~160 | 2寬*切深10 | |
| 37YMGFVR2507 | MGFV225R正 | 100~220 | 2寬*切深10 | |
| 37YMGFVR2508 | MGFV225R正 | 200~800 | 2寬*切深10 | |
| 37YMGFVR2509 | MGFV2.525R正 | 20~36 | 2.5寬*切深10 | |
| 37YMGFVR2510 | MGFV2.525R正 | 20~36 | 2.5寬*切深15 | |
| 37YMGFVR2511 | MGFV2.525R正 | 30~50 | 2.5寬*切深15 | |
| 37YMGFVR2512 | MGFV2.525R正 | 40~60 | 2.5寬*切深15 | |
| 37YMGFVR2513 | MGFV2.525R正 | 50~80 | 2.5寬*切深10 | |
| 37YMGFVR2514 | MGFV2.525R正 | 50~80 | 2.5寬*切深15 | |
| 37YMGFVR2515 | MGFV2.525R正 | 70~120 | 2.5寬*切深10 | |
| 37YMGFVR2516 | MGFV2.525R正 | 70~120 | 2.5寬*切深15 | |
| 37YMGFVR2517 | MGFV2.525R正 | 100~220 | 2.5寬*切深15 | |
| 37YMGFVR2518 | MGFV325R正 | 20~36 | 3寬*切深10 | |
| 37YMGFVR2519 | MGFV325R正 | 20~36 | 3寬*切深15 | |
| 37YMGFVR2520 | MGFV325R正 | 24~36 | 3寬*切深13 | |
| 37YMGFVR2521 | MGFV325R正 | 24~36 | 3寬*切深18 | |
| 37YMGFVR2522 | MGFV325R正 | 30~50 | 3寬*切深10 | |
| 37YMGFVR2523 | MGFV325R正 | 30~50 | 3寬*切深15 | |
| 37YMGFVR2524 | MGFV325R正 | 30~50 | 3寬*切深18 | |
| 37YMGFVR2525 | MGFV325R正 | 50~80 | 3寬*切深10 | |
| 37YMGFVR2526 | MGFV325R正 | 50~80 | 3寬*切深15 | |
| 37YMGFVR2527 | MGFV325R正 | 48~66 | 3寬*切深15 | |
| 37YMGFVR2528 | MGFV325R正 | 50~80 | 3寬*切深18 | |
| 37YMGFVR2529 | MGFV325R正 | 80~160 | 3寬*切深10 | |
| 37YMGFVR2530 | MGFV325R正 | 80~160 | 3寬*切深15 | |
| 37YMGFVR2531 | MGFV325R正 | 80~160 | 3寬*切深22 | |
| 37YMGFVR2532 | MGFV325R正 | 160~400 | 3寬*切深10 | |
| 37YMGFVR2533 | MGFV325R正 | 160~400 | 3寬*切深15 | |
| 37YMGFVR2534 | MGFV325R正 | 160~400 | 3寬*切深22 | |
| 37YMGFVR2535 | MGFV325R正 | 200~800 | 3寬*切深10 | |
| 37YMGFVR2536 | MGFV325R正 | 200~800 | 3寬*切深15 | |
| 37YMGFVR2537 | MGFV425R正 | 20~36 | 4寬*切深10 | |
| 37YMGFVR2538 | MGFV425R正 | 20~36 | 4寬*切深15 | |
| 37YMGFVR2539 | MGFV425R正 | 24~36 | 4寬*切深15 | |
| 37YMGFVR2540 | MGFV425R正 | 30~50 | 4寬*切深10 | |
| 37YMGFVR2541 | MGFV425R正 | 30~50 | 4寬*切深15 | |
| 37YMGFVR2542 | MGFV425R正 | 30~50 | 4寬*切深18 | |
| 37YMGFVR2543 | MGFV425R正 | 50~80 | 4寬*切深10 | |
| 37YMGFVR2544 | MGFV425R正 | 50~80 | 4寬*切深15 | |
| 37YMGFVR2545 | MGFV425R正 | 50~80 | 4寬*切深25 | |
| 37YMGFVR2546 | MGFV425R正 | 80~160 | 4寬*切深10 | |
| 37YMGFVR2547 | MGFV425R正 | 80~160 | 4寬*切深15 | |
| 37YMGFVR2548 | MGFV425R正 | 80~160 | 4寬*切深25 | |
| 37YMGFVR2549 | MGFV425R正 | 160~400 | 4寬*切深10 | |
| 37YMGFVR2550 | MGFV425R正 | 160~400 | 4寬*切深15 | |
| 37YMGFVR2551 | MGFV425R正 | 160~400 | 4寬*切深25 | |
| 37YMGFVR2552 | MGFV425R正 | 200~800 | 4寬*切深10 | |
| 37YMGFVR2553 | MGFV425R正 | 200~800 | 4寬*切深15 | |
| 37YMGFVR2554 | MGFV525R正 | 30~50 | 5寬*切深15 | |
| 37YMGFVR2555 | MGFV525R正 | 50~80 | 5寬*切深15 | |
| 37YMGFVR2556 | MGFV525R正 | 80~160 | 5寬*切深15 | |
| 37YMGFVR2557 | MGFV525R正 | 160~400 | 5寬*切深15 | |
| 37YMGFVR2558 | MGFV525R正 | 200~800 | 5寬*切深15 | |
| 37YMGFVR2559 | MGFV332R正 | 80~160 | 3寬*切深18 | |
| 37YMGFVR2560 | MGFV332R正 | 160~400 | 3寬*切深19 | |
| 37YMGFVR2561 | MGFV332R正 | 200~800 | 3寬*切深20 | |
| 37YMGFVR2562 | MGFV432R正 | 80~160 | 4寬*切深18 | |
| 37YMGFVR2563 | MGFV432R正 | 160~400 | 4寬*切深18 | |
| 37YMGFVR2564 | MGFV432R正 | 200~800 | 4寬*切深18 | |
| 37YMGFVR2565 | MGFV532R正 | 200~800 | 5寬*切深18 |
