MAH 弧型 端面切槽刀
產品特點
型號 : MAH

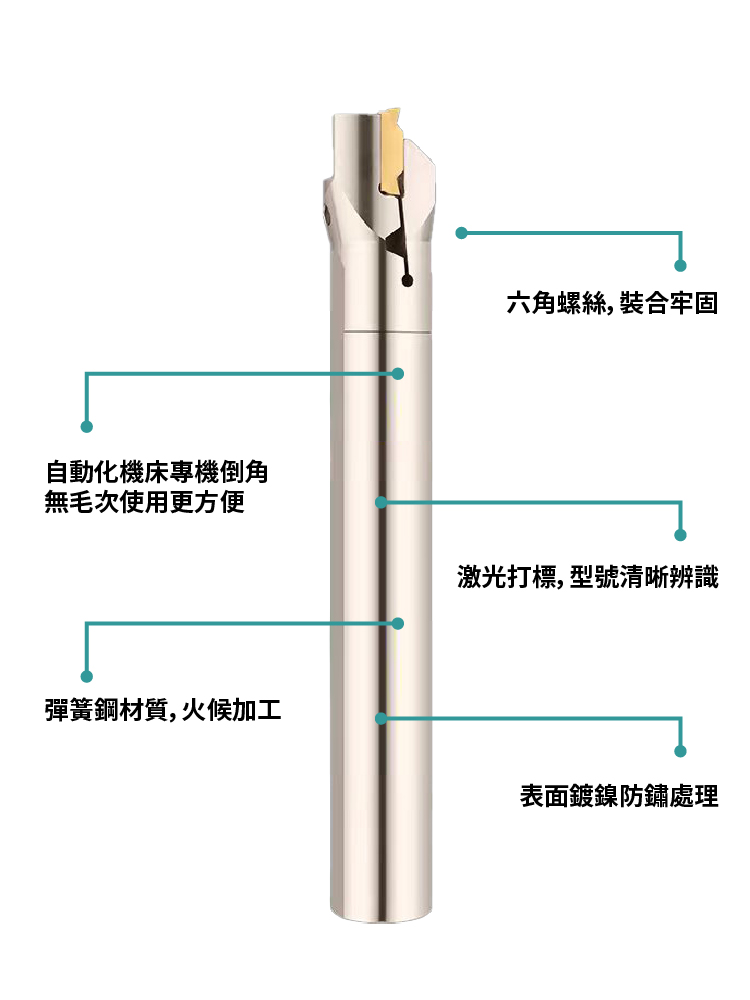

本刀桿採用彈簧鋼材質，表面鍍鎳處理。而市面上很多白色刀桿都是假冒彈簧鋼材。
本款有別於市面貨常見工藝，造型較美觀、具備更好耐用性。
弧型 端面切槽刀
產品規格
| 訂購編號 | MGGN 刀片 | 刀片寬度 | 柄直徑 | 正刀 | 切深 | 加工 直徑範圍 |
| MAH320R13-30/50 | MAH | 3 | 20 | R | 13 | 30/50 |
| MAH320R15-40/60 | MAH | 3 | 20 | R | 15 | 40/60 |
| MAH320R18-100/220 | MAH | 3 | 20 | R | 18 | 100/220 |
| MAH320R20-200/800 | MAH | 3 | 20 | R | 20 | 200/800 |
| MAH325R13-30/50 | MAH | 3 | 25 | R | 13 | 30/50 |
| MAH325R15-30/50 | MAH | 3 | 25 | R | 15 | 30/50 |
| MAH325R15-40/60 | MAH | 3 | 25 | R | 15 | 40/60 |
| MMA325R16-50/80 | MMA | 3 | 25 | R | 16 | 50/80 |
| MAH325R18-100/220 | MAH | 3 | 25 | R | 18 | 100/220 |
| MAH325R17-70/120 | MAH | 3 | 25 | R | 17 | 70/120 |
訂購編號 | 刀片 | 柄徑 | 切深 | 加工 直徑範圍 | 訂購編號 | 刀片 | 柄徑 | 切深 | 加工 直徑範圍 | |||
1 | MAH320R13-30/50 | MGGN 300 寛度3 | 20 | 13 | 30~50 | 25 | MAH425R17-40/60 | MGGN 400 寛度4 | 25 | 17 | 40~60 | |
2 | MAH320R15-40/60 | 15 | 40~60 | 26 | MAH425R18-50/80 | 18 | 50~80 | |||||
3 | MAH320R16-50/80 | 16 | 50~80 | 27 | MAH425R20-70/120 | 20 | 70~120 | |||||
4 | MAH320R18-100/220 | 18 | 100~220 | 28 | MAH425R22-100/220 | 22 | 100~220 | |||||
5 | MAH320R17-70/120 | 17 | 70~120 | 29 | MAH425R22-160/400 | 22 | 160~400 | |||||
6 | MAH320R20-200/800 | 20 | 200~800 | 30 | MAH425R25-200/800 | 25 | 200~800 | |||||
7 | MAH325R13-30/50 | 25 | 13 | 30~50 | 31 | MAH520R17-30/50 | MGGN 500 寛度5 | 20 | 17 | 30~50 | ||
8 | MAH325R15-30/50 | 15 | 30~50 | 32 | MAH520R20-40/60 | 20 | 40~60 | |||||
9 | MAH325R15-40/60 | 15 | 40~60 | 33 | MAH520R26-70/120 | 26 | 70~120 | |||||
10 | MAH325R16-50/80 | 16 | 50~80 | 34 | MAH520R28-100/220 | 28 | 100~220 | |||||
11 | MAH325R17-70/120 | 17 | 70~120 | 35 | MAH520R30-200/800 | 30 | 200~800 | |||||
12 | MAH325R18-100/220 | 18 | 100~220 | 36 | MAH525R17-30/50 | 25 | 17 | 30~50 | ||||
13 | MAH325R20-200/800 | 20 | 200~800 | 37 | MAH525R20-40/60 | 20 | 40~60 | |||||
14 | MAH332R15-40/60 | 32 | 15 | 40~60 | 38 | MAH525R22-50/80 | 22 | 50~80 | ||||
15 | MAH332R17-70/120 | 17 | 70~120 | 39 | MAH525R26-70/120 | 26 | 70~120 | |||||
16 | MAH332R18-100/220 | 18 | 100~220 | 40 | MAH432R18-50/80 | MGGN 400 寛度4 | 32 | 18 | 50~80 | |||
17 | MAH332R20-200/800 | 20 | 200~800 | 41 | MAH432R20-70/120 | 20 | 70~120 | |||||
18 | MAH420R15-30/50 | MGGN 400 寛度4 | 20 | 15 | 30~50 | 42 | MAH432R22-100/220 | 22 | 100~220 | |||
19 | MAH420R17-40/60 | 17 | 40~60 | 43 | MAH432R25-200/800 | 25 | 200~800 | |||||
20 | MAH420R18-50/80 | 18 | 50~80 | 44 | MAH532R20-40/60 | MGGN 500 寛度5 | 20 | 40~60 | ||||
21 | MAH420R20-70/120 | 20 | 70~120 | 45 | MAH532R22-50/80 | 22 | 50~80 | |||||
22 | MAH420R22-100/220 | 22 | 100~220 | 46 | MAH532R26-70/120 | 26 | 70~120 | |||||
23 | MAH420R25-200/800 | 25 | 200~800 | 47 | MAH532R28-100/220 | 28 | 100~220 | |||||
24 | MAH425R15-30/50 | 25 | 15 | 30~50 | 48 | MAH532R30-200/800 | 30 | 200~800 |
產品介紹

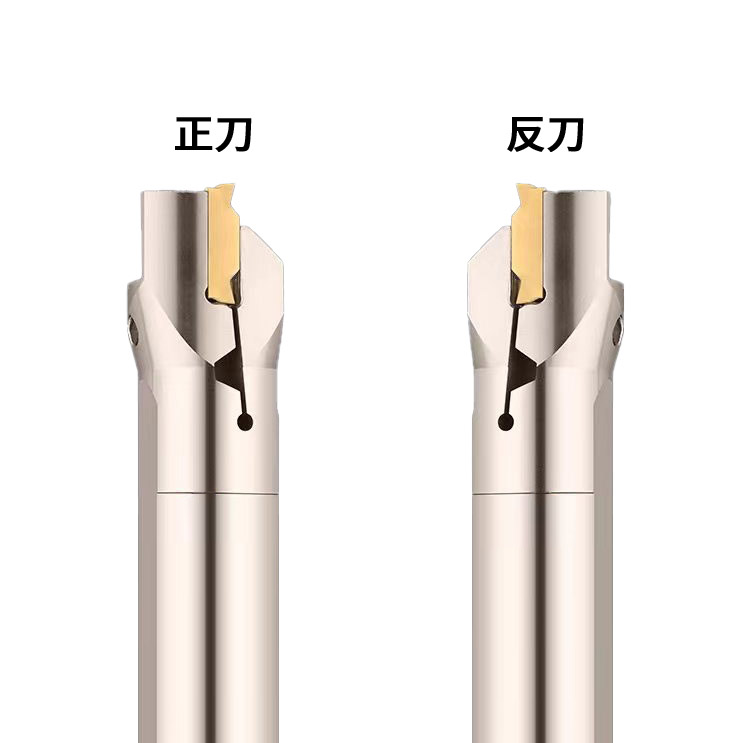

正反刀可選，滿足不同加工需求。
