SDUC 內徑車刀

產品特點

型號 : SDUC

內徑車刀

產品規格

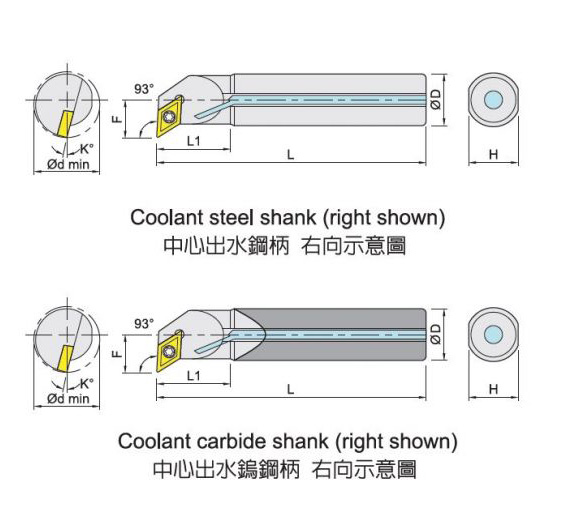

Steel shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K	dmin
S10K-SDUCR/L-07	A10K-SDUCR/L-07	10	125	25	7	9	13	13	DC..0702..	①	0.08
S12M-SDUCR/L-07	A12M-SDUCR/L-07	12	150	30	8.5	11	10	16			0.13
S16Q-SDUCR/L-07	A16Q-SDUCR/L-07	16	180	30	11	15	7	20			0.28
S20R-SDUCR/L-07	A20R-SDUCR/L-07	20	200	40	12.5	18	7	25			0.49
S16Q-SDUCR/L-11	A16Q-SDUCR/L-11	16	180	30	11	15	7	20	DC..11T3..	②	0.28
S20R-SDUCR/L-11	A20R-SDUCR/L-11	20	200	40	13	18	7	25			0.49
S25R-SDUCR/L-11	A25R-SDUCR/L-11	25	200	45	16	23	5	32			0.77
S25S-SDUCR/L-11	A25S-SDUCR/L-11	25	250	45	16	23	5	32			0.96
S32S-SDUCR/L-11	A32S-SDUCR/L-11	32	250	48	20	30	5	40			1.58
S40T-SDUCR/L-11	A40T-SDUCR/L-11	40	300	55	26	37	3	50			2.96
S50V-SDUCR/L-11		50	400	60	31	47	3	60			6.16

Carbide shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K	dmin
C10K-SDUCR/L-07	E10K-SDUCR/L-07	10	125	25	7	9.2	13	13	DC..0702....	①	0.14
C10M-SDUCR-07	E10M-SDUCR-07	10	150	25	7	9.2	13	13			0.17
C12M-SDUCR/L-07	E12M-SDUCR/L-07	12	150	30	8.5	11.2	10	16			0.24
C12Q-SDUCR-07	E12Q-SDUCR-07	12	180	30	8.5	11.2	10	16			0.29
C16R-SDUCR-07	E16R-SDUCR-07	16	200	30	11	15.2	7	20			0.58
C16R-SDUCR/L-11	E16R-SDUCR/L-11	16	200	30	11	15.2	7	20	DC..11T3	②	0.58
C20R-SDUCR/L-11	E20R-SDUCR/L-11	20	200	40	13	19.2	7	25			0.91
C25S-SDUCR-11	E25S-SDUCR-11	25	250	45	16	24.2	5	32			1.77

Insert	Spare parts	Screw	Wrench
DC..0702..	①	MS2506B	ETF09
DC..11T3..	②	MS4009A	ETF15
