SDQC 內徑車刀

產品特點

型號 : SDQC

內徑車刀

產品規格

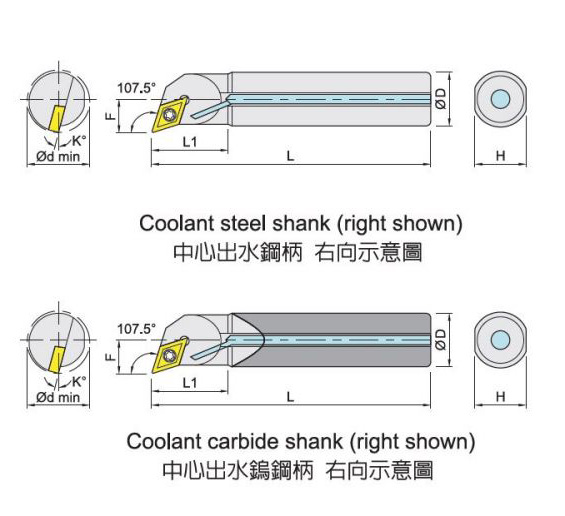

Steel shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
S10K-SDQCR/L-07	A10K-SDQCR/L-07	10	125	22	6.5	9	13	13	DC..0702..	①	0.08
S12M-SDQCR/L-07	A12M-SDQCR/L-07	12	150	30	8	11	10	16			0.13
S16Q-SDQCR/L-07	A16Q-SDQCR/L-07	16	180	35	10.25	15	7	20			0.28
S20R-SDQCR/L-07	A20R-SDQCR/L-07	20	200	40	12.5	18	7	25			0.49
S16Q-SDQCR/L-11	A16Q-SDQCR/L-11	16	180	35	10.5	15	7	20	DC..11T3..	②	0.28
S20R-SDQCR/L-11	A20R-SDQCR/L-11	20	200	40	13	18	7	25			0.49
S25R-SDQCR/L-11	A25R-SDQCR/L-11	25	200	45	15.5	23	5	32			0.77
S32S-SDQCR/L-11	A32S-SDQCR/L-11	32	250	48	19.5	30	5	40			1.58
S40T-SDQCR/L-11	A40T-SDQCR/L-11	40	300	55	25	37	3	50			2.96
S50U-SDQCR/L-11	A50U-SDQCR-11	50	350	60	30	47	2	60			5.4

Carbide shank Item code		Dimensions,mm							Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	F	H	K°	dmin
C10K-SDQCR/L-07	E10K-SDQCR-07	10	125	22	6	9.2	13	13	DC..0702..	①	0.14
C10M-SDQCR-07	E10M-SDQCR-07	10	150	22	6	9.2	13	13			0.17
C12M-SDQCR/L-07	E12M-SDQCR/L-07	12	150	30	8	11.2	10	16			0.24
C12Q-SDQCR-07	E12Q-SDQCR-07	12	180	30	8	11.2	10	16			0.29
C16R-SDQCR/L-07	E16R-SDQCR/L-07	16	200	35	10.25	15.2	7	20			0.58
C20R-SDQCR-07		20	200	40	12.5	19.2	7	25			0.9
C16R-SDQCR-11	E16R-SDQCR-11	16	200	35	10.5	15.2	7	20	DC..11T3..	②	0.58
C20R-SDQCR-11		20	200	40	13	19.2	7	25			0.9
C25S-SDQCR-11		25	250	45	15.5	24.2	5	32			1.77

Insert	Spare parts	Screw	Wrench
DC..0702..	①	MS2506B	ETF09
DC..11T3..	②	MS4009A	ETF15
