SDZC 內徑車刀

產品特點

型號 : SDZC

內徑車刀

產品型錄

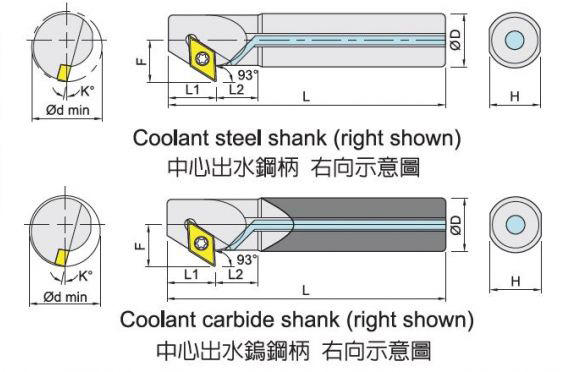

Steel shank Item code		Dimensions,mm								Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	L2	F	H	K°	dmin
S10M-SDZCR/L-07	A10M-SDZCR/L-07	10	150	12	18	8.5	9	13	14	DC..0702..	①	0.09
S12M-SDZCR/L-07	A12M-SDZCR/L-07	12	150	12	20	10.5	11	10	17			0.13
S16Q-SDZCR/L-07	A16Q-SDZCR/L-07	16	180	12	26	12.5	15	7	21			0.28
S16Q-SDZCR/L-11	A16Q-SDZCR/L-11	16	180	18	20	13.5	15	7	22	DC..11T3..	②	0.28
S20R-SDZCR/L-11	A20R-SDZCR/L-11	20	200	18	27	15.5	18	7	26		③	0.49
S25R-SDZCR/L-11	A25R-SDZCR/L-11	25	200	18	32	18	23	5	33			0.77
S32S-SDZCR/L-11	A32S-SDZCR/L-11	32	250	18	42	21.5	30	5	40			1.58

Carbide shank Item code		Dimensions,mm								Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	L	L1	L2	F	H	K°	dmin
C10M-SDZCR-07		10	150	12	18	8.5	9.2	13	14	DC..0702..	①	0.17
	E12M-SDZCR-07	12	150	12	20	10.5	11.2	10	17			0.25
C12Q-SDZCR-07		12	180	12	20	10.5	11.2	10	17			0.29
C16R-SDZCR-07		16	200	12	26	12.5	15.2	7	21			0.58
C20R-SDZCR-11		20	200	18	27	15.5	18	7	26	DC..11T3	③	0.9

Insert	Spare parts	Screw	Wrench
DC..0702..	①	MS2506B	ETF09
DC..11T3..	②	MS4009A	ETF15
DC..11T3..	③	MS4011A	ETF15
