SCLC/P 內徑車刀

產品特點

型號 : SCLC/P

內徑車刀

產品規格

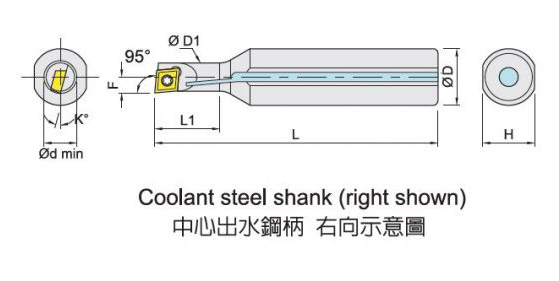

Steel shank Item code		Dimensions,mm								Insert	Spare parts	Weight (KG)
無水孔Non-coolant	水孔Coolant	D	D1	L	L1	F	H	K°	dmin
S1004K-SCLCR/L-03M-L12	A1004K-SCLCR/L-03M-L12	10	4	125	12	2.5	9	15	5	CC..03S1..	①	0.08
S1005K-SCLCR/L-03M-L15	A1005K-SCLCR/L-03M-L15	10	5	125	15	3	9	15	6			0.08
S1204H-SCLCR/L-03E-L08	A1204H-SCLCR/L-03E-L08	12	4	100	8	2.5	11	15	5	CC..0301..	②	0.09
S1204H-SCLCR/L-03E-L12	A1204H-SCLCR/L-03E-L12	12	4	100	12	2.5	11	15	5			0.09
S1206K-SCLCR/L-04K-L14	A1206K-SCLCR/L-04K-L14	12	6	125	14	3.5	11	13	7	CC..0401..	③	0.11
S1607K-SCLCR/L-06-L20	A1607K-SCLCR/L-06-L20	16	7	125	20	4	15	13	8	CC..0602..	④	0.2
S1608K-SCLCR/L-06-L20	A1608K-SCLCR/L-06-L20	16	8	125	20	4.5	15	11	9			0.2
S1608K-SCLCR/L-06-L25	A1608K-SCLCR/L-06-L25	16	8	125	25	4.5	15	11	9			0.2
S1609K-SCLCR/L-06-L25	A1609K-SCLCR/L-06-L25	16	9	125	25	5	15	11	10			0.2
S1612M-SCLPR/L-08-L30	A1612M-SCLPR/L-08-L30	16	12	150	30	7	15	7	14	CP..0802..	⑤	0.24
S2014M-SCLPR/L-08-L30		20	14	150	30	7.5	18	7	15			0.37
S2016Q-SCLPR-09		20	16	180	20	10.5	18	7	21	CP..0903..	⑥	0.44

Insert	Spare parts	Screw	Wrench
CC..03S1..	①	MS1603B	ETF06
CC..0301..	②	MS1603B	ETF06
CC..0401..	③	MS2004A	ETF06
CC..0602..	④	MS2506A	ETF09
CP..0802..	⑤	MS3008A	ETF09
CP..0903..	⑥	MS4008A	ETF15
