XXRT BT50 主軸拉力計 數顯示
產品特點
型號 : XXRT BT50
XXRT BT50 主軸拉力計 數顯示主軸拉力計 數顯示

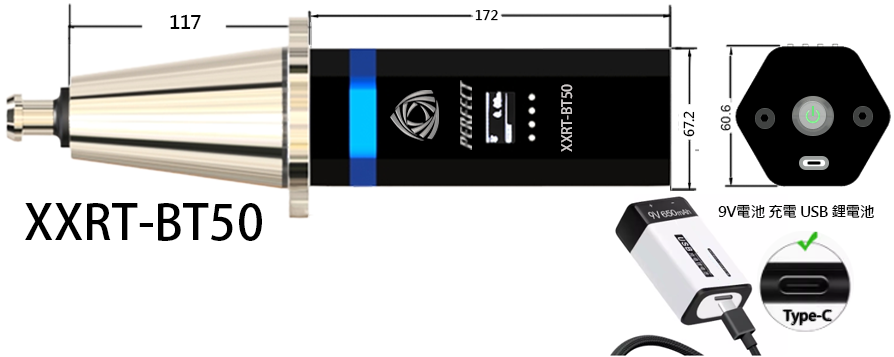

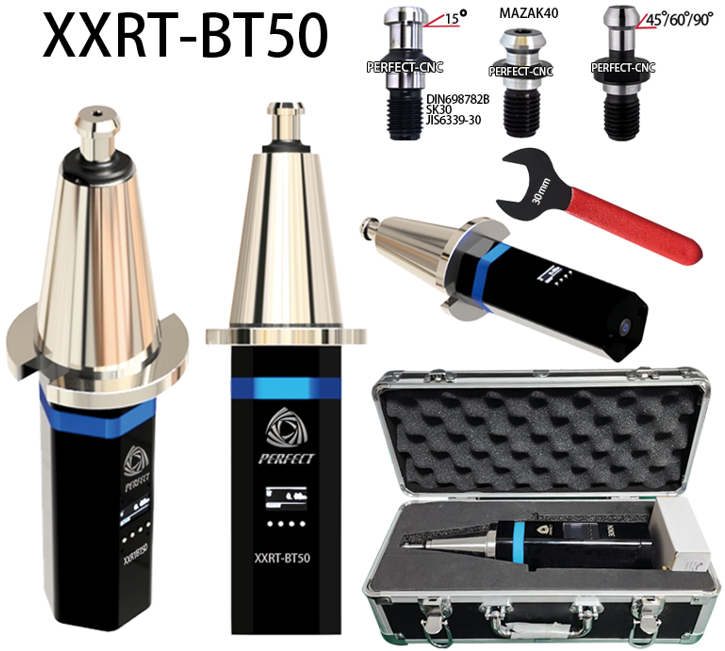

XXRT BT50主軸拉力計 數顯示

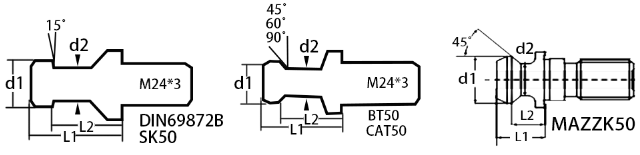

| Model | d1 | d2 | L1 | L2 | Measuring range | weight kg |
| BT50-45° | 23 | 17 | 45 | 35.2 | 0~75KN tolerance ±15N | 6.8KG |
| BT50-60° | ||||||
| BT50-90° | ||||||
| CAT50*45° | ||||||
| CAT50*60° | ||||||
| CAT50*90° | ||||||
| ISO50 | 29.1 | 19.6 | 25.5 | 17.95 | ||
| ISO7388-45° | ||||||
| MAZAK-50 | 29 | 20.8 | 25.2 | 17.56 | ||
| JIS6339-50 | 28 | 21 | 34 | 25 | ||
| DIN50(69872B)-15° | 28 | 21 | 34 | 25 | ||
| SK50-15° |
1KN=1000N / 1KN=102kgf / 1 N=10- 1 kgf
