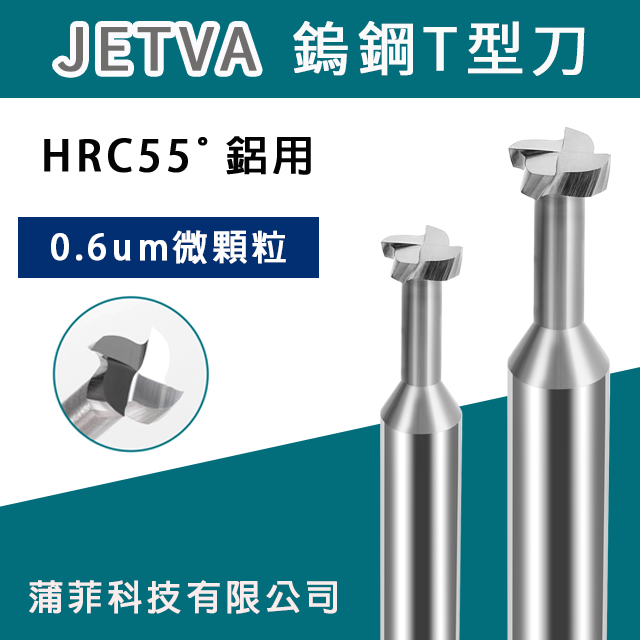

JETVA 鎢鋼T型刀 鋁用
產品特點
型號 : JETVA
鎢鋼T型刀 鋁用鎢鋼T型刀 鋁用
JETVA 鎢鋼T型刀 鋁用
| JETVA 規格 | 牌價 | JETVA 規格 | 牌價 | |
| 3*0.5*4*50L | 520 | 10*3*60L | 1380 | |
| 3*1*4*50L | 10*4*60L | |||
| 3*1.5*4*50L | 10*5*60L | |||
| 3*2*4*50L | 12*1*60L | 1600 | ||
| 4*0.5*50L | 520 | 12*1.5*60L | ||
| 4*1*50L | 12*2*60L | |||
| 4*1.5*50L | 12*2.5*60L | |||
| 4*2*50L | 12*3*60L | |||
| 6*0.5*50L | 900 | 12*4*60L | ||
| 6*1*50L | 12*5*60L | |||
| 6*1.5*50L | 14*1*75L | 2700 | ||
| 6*2*50L | 14*1.5*75L | |||
| 6*2.5*50L | 14*2*75L | |||
| 6*3*50L | 14*2.5*75L | |||
| 8*0.5*50L | 1100 | 14*3*75L | ||
| 8*1*50L | 14*4*75L | |||
| 8*1.5*50L | 14*5*75L | |||
| 8*2*50L | 16*1*75L | 3200 | ||
| 8*2.5*50L | 16*1.5*75L | |||
| 8*3*50L | 16*2*75L | |||
| 10*1*60L | 1380 | 16*2.5*75L | ||
| 10*1.5*60L | 16*3*75L | |||
| 10*2*60L | 16*4*75L | |||
| 10*2.5*60L | 16*5*75L |

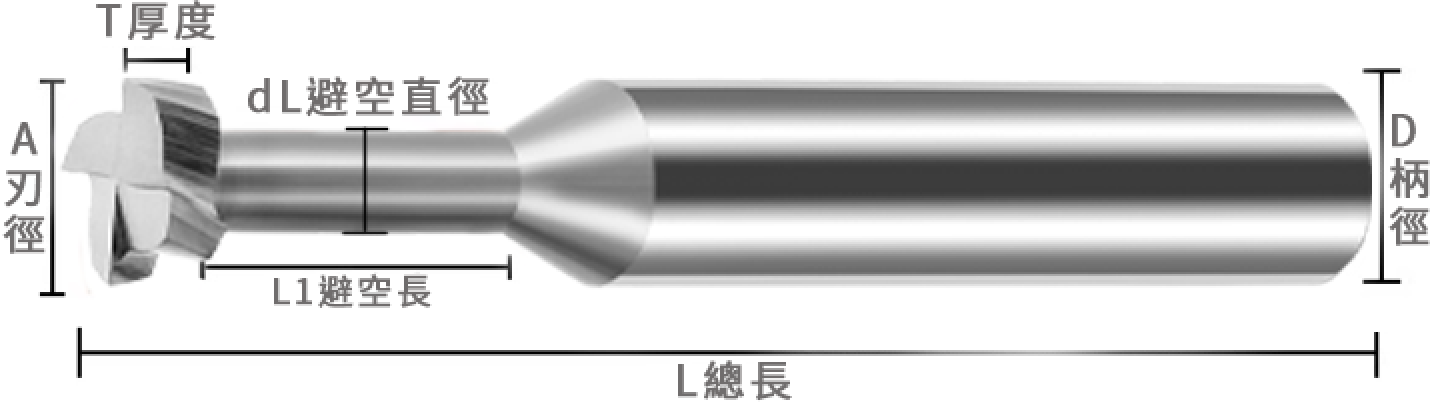

| 刃徑 | T型厚度 | L1 | dL | D | L | 刃數 |
| 3 | 0.5/1/1.5/2 | 6 | 1.5 | 4 | 50 | 4 |
| 4 | 0.5/1/1.5/2 | 6 | 2 | 4 | 50 | |
| 6 | 0.5/1/1.5/2/2.5/3 | 9 | 3 | 6 | 50 | |
| 8 | 0.5/1/1.5/2/2.5/3 | 12 | 4 | 8 | 50 | |
| 10 | 1 /1.5/2/2.5/3/4/5 | 15 | 5 | 10 | 60 | |
| 12 | 1 /1.5/2/2.5/3/4/5 | 15 | 6 | 12 | 60 | |
| 14 | 1 /1.5/2/2.5/3/4/5 | 20 | 7 | 14 | 75 | |
| 16 | 1 /1.5/2/2.5/3/4/5 | 20 | 8 | 16 | 75 |
