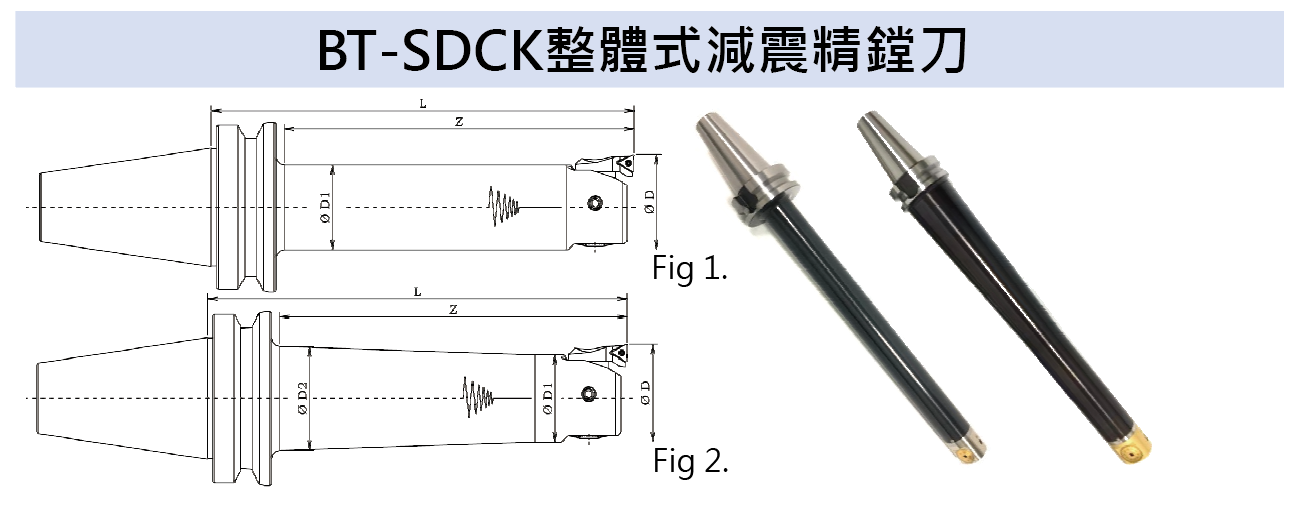

BT-SDCK 整體式減震精鏜刀
產品特點
型號 : BT-SDCK
整體式減震精鏜刀
| 型號 Type | Fig | 鏜孔範圍 øD(mm) | 有效長 Z(mm) | 總深 L(mm) | 刀桿外徑(mm) | 重量 (KG) | ||
| øD2 | øD1 | |||||||
| BT30-SDCK20-170H | 1 | 20-36 | 150 | 170 | / | 19 | 1.64 | |
| BT30-SDCK20-210H BG | 2 | 190 | 210 | 1.72 | ||||
| BT30-SDCK25-210H | 1 | 25-47 | 190 | 210 | / | 24 | 1.75 | |
| BT30-SDCK25-260H BG | 2 | 240 | 260 | 1.83 | ||||
| BT30-SDCK32-260H | 1 | 32-60 | 240 | 260 | / | 31 | 2.52 | |
| BT30-SDCK32-330H BG | 2 | 310 | 330 | 2.58 | ||||
| BT30-SDCK40-310H | 1 | 41-74 | 290 | 310 | / | 39 | 3.24 | |
| BT30-SDCK40-410H BG | 2 | 390 | 410 | 3.55 | ||||
| BT30-SDCK52-420H | 1 | 53-95 | 400 | 420 | / | 50 | 7.5 | |
| BT30-SDCK52-520H BG | 2 | 500 | 520 | 8.3 | ||||
| BT30-SDCK68-420H | 1 | 68-150 | 400 | 420 | / | 64 | 10.73 | |
| BT30-SDCK68-550H BG | 2 | 530 | 550 | 13.87 | ||||
| BT40-SDCK20-170H | 1 | 20-36 | 145 | 170 | / | 19 | 1.69 | |
| BT40-SDCK20-215H BG | 2 | 190 | 215 | 1.77 | ||||
| BT40-SDCK25-210H | 1 | 25-47 | 185 | 210 | / | 24 | 1.94 | |
| BT40-SDCK25-275H BG | 2 | 250 | 275 | 2.1 | ||||
| BT40-SDCK32-270H | 1 | 32-60 | 245 | 270 | / | 31 | 2.67 | |
| BT40-SDCK32-335H BG | 2 | 310 | 335 | 3 | ||||
| BT40-SDCK40-335H | 1 | 41-74 | 310 | 335 | / | 39 | 4.04 | |
| BT40-SDCK40-415H BG | 2 | 390 | 415 | 4.74 | ||||
| BT40-SDCK52-425H | 1 | 53-95 | 400 | 425 | / | 50 | 7.24 | |
| BT40-SDCK52-525H BG | 2 | 500 | 525 | 8.67 | ||||
| BT40-SDCK68-530H | 1 | 68-150 | 505 | 530 | / | 64 | 13.7 | |
| BT40-SDCK68-600H BG | 2 | 575 | 600 | 15.4 | ||||
| BT50-SDCK20-185H | 1 | 20-36 | 150 | 185 | / | 19 | 4.2 | |
| BT50-SDCK20-225H BG | 2 | 190 | 225 | 4.25 | ||||
| BT50-SDCK25-225H | 1 | 25-47 | 190 | 225 | / | 24 | 4.5 | |
| BT50-SDCK25-275H BG | 2 | 240 | 275 | 4.64 | ||||
| BT50-SDCK32-280H | 1 | 32-60 | 245 | 280 | / | 31 | 5.06 | |
| BT50-SDCK32-345H BG | 2 | 310 | 345 | 5.34 | ||||
| BT50-SDCK40-345H | 1 | 41-74 | 310 | 345 | / | 39 | 6.4 | |
| BT50-SDCK40-425H BG | 2 | 390 | 425 | 7.03 | ||||
| BT50-SDCK52-435H | 1 | 53-95 | 400 | 435 | / | 50 | 9.5 | |
| BT50-SDCK52-530H BG | 2 | 495 | 530 | 10.82 | ||||
| BT50-SDCK68-540H | 1 | 68-150 | 505 | 540 | / | 64 | 15.91 | |
| BT50-SDCK68-670H BG | 2 | 635 | 670 | 18.97 | ||||
| BT50-SDCK100-600H | 1 | 100-205 | 565 | 600 | / | 70 | 20 | |
 BT50-SDCK100-735H BG | 2 | 700 | 735 | 23.82 | ||||
