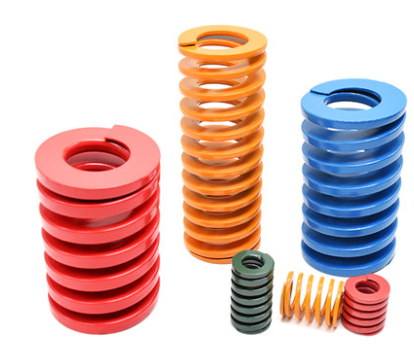

WC 彈簧
產品特點
型號 : WC
訂購時請告知外徑*內徑*長度
彈簧

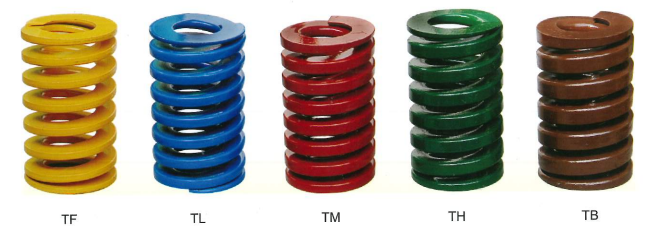

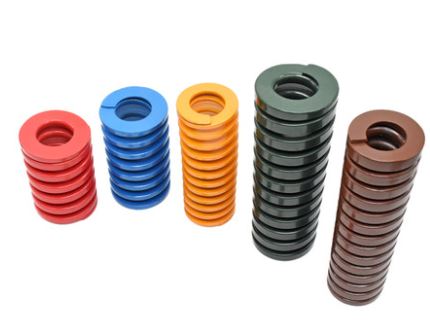

| 顏色 | 黃色TF | 藍色TL | 紅色TM | 綠色TH | 茶色TB |
| 負荷強度 | 較小負荷 | 輕負荷 | 中負荷 | 重負荷 | 超重負荷 |
| 最大壓縮 | 58% | 48% | 38% | 28% | 24% |
| 常用模具 | 塑膠模 | 塑膠模 | 沖壓模 | 沖壓模 | 沖壓模 |

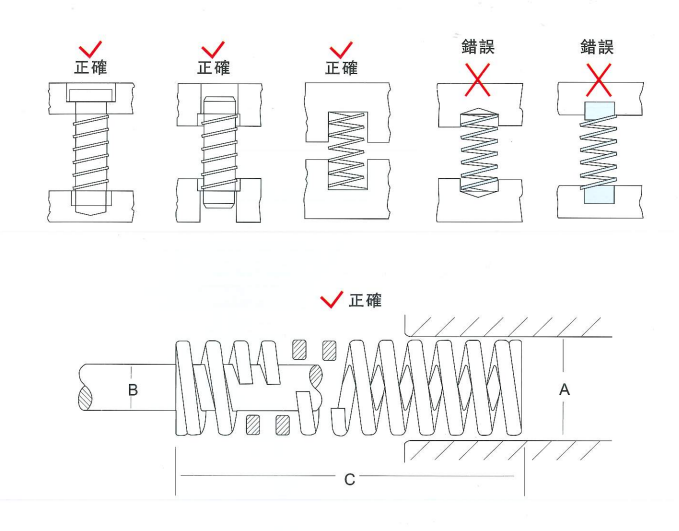

正確的安裝方式
彈簧安裝在平底孔而無導桿時，孔的深度至少達到彈簧的二圈
彈簧安裝有導桿時，導桿長度必須大於彈簧的長度
外徑 | 內徑 | 極限壓縮率 | 極限壓力 | 極限壓力 |
mm | mm | 下壓距離 | kg | N |
6 | 3+ | 50% | 6 | 59 |
8 | 4+ | 50% | 8 | 78 |
10 | 5+ | 50% | 10 | 98 |
12 | 6+ | 50% | 14 | 137 |
14 | 7+ | 50% | 18 | 176 |
16 | 8+ | 50% | 21 | 206 |
18 | 9+ | 50% | 26 | 255 |
20 | 10+ | 50% | 32 | 314 |
22 | 11+ | 50% | 40 | 392 |
25 | 12.5+ | 50% | 50 | 490 |
27 | 13.5+ | 50% | 60 | 588 |
30 | 15+ | 50% | 72 | 706 |
35 | 17.5+ | 50% | 98 | 960 |
40 | 20+ | 50% | 128 | 1254 |
50 | 25+ | 50% | 200 | 1960 |
60 | 30+ | 50% | 288 | 2822 |
70 | 40+ | 50% | 400 | 3920 |
外徑 | 內徑 | 極限壓縮率 | 極限壓力 | 極限壓力 |
mm | mm | 下壓距離 | kg | N |
6 | 3+ | 40% | 8 | 78 |
8 | 4+ | 40% | 10 | 98 |
10 | 5+ | 40% | 14 | 137 |
12 | 6+ | 40% | 21 | 206 |
14 | 7+ | 40% | 28 | 274 |
16 | 8+ | 40% | 35 | 343 |
18 | 9+ | 40% | 43 | 421 |
20 | 10+ | 40% | 54 | 529 |
22 | 11+ | 40% | 67 | 657 |
25 | 12.5+ | 40% | 84 | 823 |
27 | 13.5+ | 40% | 100 | 980 |
30 | 15+ | 40% | 121 | 1186 |
35 | 17.5+ | 40% | 165 | 1617 |
40 | 20+ | 40% | 216 | 2117 |
50 | 25+ | 40% | 338 | 3312 |
60 | 30+ | 40% | 486 | 4763 |
70 | 40+ | 40% | 610 | 5978 |
外徑 | 內徑 | 極限壓縮率 | 極限壓力 | 極限壓力 |
mm | mm | 下壓距離 | kg | N |
6 | 3+ | 32% | 10 | 98 |
8 | 4+ | 32% | 14 | 137 |
10 | 5+ | 32% | 20 | 194 |
12 | 6+ | 32% | 29 | 382 |
14 | 7+ | 32% | 39 | 500 |
16 | 8+ | 32% | 51 | 637 |
18 | 9+ | 32% | 65 | 784 |
20 | 10+ | 32% | 80 | 951 |
22 | 11+ | 32% | 97 | 1225 |
25 | 12.5+ | 32% | 125 | 1431 |
27 | 13.5+ | 32% | 146 | 1764 |
30 | 15+ | 32% | 180 | 2401 |
35 | 17.5+ | 32% | 245 | 960 |
40 | 20+ | 32% | 320 | 3136 |
50 | 25+ | 32% | 500 | 4900 |
60 | 30+ | 32% | 720 | 7056 |
70 | 40+ | 32% | 1000 | 9800 |
外徑 | 內徑 | 極限壓縮率 | 極限壓力 | 極限壓力 |
mm | mm | 下壓距離 | kg | N |
6 | 3+ | 24% | 14 | 137 |
8 | 4+ | 24% | 21 | 206 |
10 | 5+ | 24% | 30 | 294 |
12 | 6+ | 24% | 43 | 421 |
14 | 7+ | 24% | 59 | 578 |
16 | 8+ | 24% | 77 | 755 |
18 | 9+ | 24% | 97 | 951 |
20 | 10+ | 24% | 120 | 1176 |
22 | 11+ | 24% | 145 | 1421 |
25 | 12.5+ | 24% | 187 | 1833 |
27 | 13.5+ | 24% | 219 | 2146 |
30 | 15+ | 24% | 270 | 2646 |
35 | 17.5+ | 24% | 367 | 3597 |
40 | 20+ | 24% | 480 | 4704 |
50 | 25+ | 24% | 750 | 7350 |
60 | 30+ | 24% | 1080 | 10584 |
70 | 40+ | 24% | 1400 | 13720 |
外徑 | 內徑 | 極限壓縮率 | 極限壓力 | 極限壓力 |
mm | mm | 下壓距離 | kg | N |
6 | 3+ | 20% | 18 | 176 |
8 | 4+ | 20% | 34 | 333 |
10 | 5+ | 20% | 45 | 441 |
12 | 6+ | 20% | 58 | 568 |
14 | 7+ | 20% | 75 | 735 |
16 | 8+ | 20% | 100 | 980 |
18 | 9+ | 20% | 125 | 1225 |
20 | 10+ | 20% | 160 | 1568 |
22 | 11+ | 20% | 195 | 1911 |
25 | 12.5+ | 20% | 245 | 2401 |
27 | 13.5+ | 20% | 290 | 2842 |
30 | 15+ | 20% | 360 | 3582 |
35 | 17.5+ | 20% | 490 | 4802 |
40 | 20+ | 20% | 640 | 6272 |
50 | 25+ | 20% | 1000 | 9800 |
60 | 30+ | 20% | 1440 | 14112 |
70 | 40+ | 20% | 2000 | 19600 |
