ALM 50º鎢鋼鋁用銑刀3刃

產品特點

型號 : ALM

50º鎢鋼銑刀3刃
鋁材適用
HRC45以下
0.6u Co10%

50º鎢鋼鋁用銑刀3刃

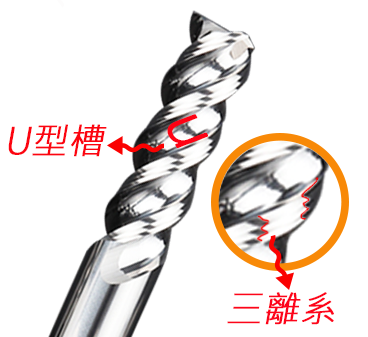

   圓溝

50º ALM 鎢鋼鋁用銑刀3刃(標準型)

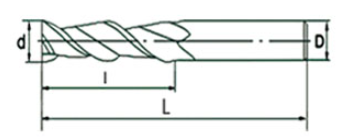

產品編號

刃徑 / d

刃長 / l

全長 / L

柄徑 / D

ALM-0104050

1

3

50

4

ALM-0154050

1.5

5

50

4

ALM-0204050

2

6

50

4

ALM-0254050

2.5

8

50

4

ALM-0304050

3

9

50

4

ALM-0404050

4

12

50

4

ALM-0206050

2

6

50

6

ALM-0256050

2.5

8

50

6

ALM-0306050

3

9

50

6

ALM-0406050

4

12

50

6

ALM-0506050

5

13

50

6

ALM-0606050

6

18

50

6

ALM-0708060

7

21

60

8

ALM-0808060

8

24

60

8

ALM-0910075

9

27

75

10

ALM-1010075

10

30

75

10

ALM-1112075

11

33

75

12

ALM-1212075

12

36

75

12

ALM-1414075

14

45

100

14

ALM-1616100

16

50

100

16

ALM-2020100

20

50

100

20

50º ALMI 鎢鋼鋁用銑刀3刃(長刃型)

產品編號

刃徑 / d

刃長 / l

全長 / L

柄徑 / D

ALMI-0106050

1

5

50

6

ALMI-0156050

1.5

8

50

6

ALMI-0206050

2

10

50

6

ALMI-0256050

2.5

15

50

6

ALMI-0306075

3

20

75

6

ALMI-0406075

4

25

75

6

ALMI-0506075

5

30

75

6

ALMI-0606100

6

35

100

6

ALMI-0708100

7

40

100

8

ALMI-0808100

8

45

100

8

ALMI-0910100

9

50

100

10

ALMI-1010100

10

55

100

10

ALMI-1112100

11

55

100

12

ALMI-1212120

12

65

120

12

ALMI-1414120

14

65

120

14

ALMI-1616150

16

80

150

16

ALMI-2020120

20

65

120

20

ALMI-2020150

20

80

150

20
