HCTJ Hydraulic five-axis grinding chuck
Characteristic
Model : HCTJ
+-0.003mmHydraulic five-axis grinding chuck
Hydraulic five-axis grinding chuck

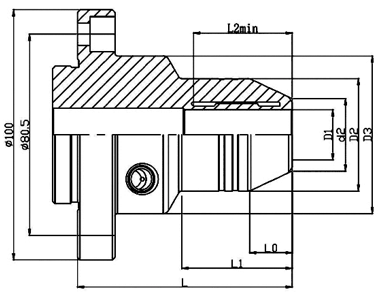

型號 | D1 | d2 | D2 | D3 | L | L0 | L1 | L2mIn |
HCTJ12 | 12 | 21 | 37 | 63 | 86 | 17 | 42 | 36 |
HCTJ20 | 20 | 29 | 45 | 63 | 86 | 17 | 45 | 39 |
HCTJ32 | 32 | 43 | 57 | 64.5 | 86 | 15 | 48 | 43 |
