Characteristic

Model : 3X5DIN

The DIN spindle grippers are designed in accordance with DIN 69872 standard, featuring male-threaded pull stud interfaces and M45 mechanical amplification structure to provide enhanced clamping force with minimal release resistance. This ensures stable and fast tool clamping operations, especially in high-speed or high-rigidity CNC spindle systems.

Standard clamping angle α = 15°, offering a balance of force and stability
Compatible with spindle taper types: DIN30 / DIN40 / DIN50 / DIN60
Thread size ranges from M10 to M30 for higher torque capacity
Defined “Clamping Position (SS)” and “Release Position (LS)” shown in diagram
DIN60 features extended release stroke with ha = 1.15mm

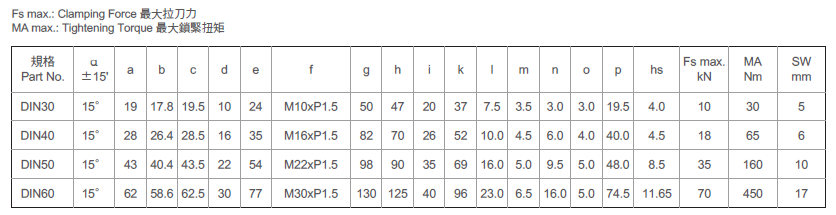

DIN 69872 Spindle Gripper

Model	Thread	Max Clamping Force Fs (kN)	Max Torque MA (Nm)	SW (mm)
DIN30	M10×P1.5	10	30	5
DIN40	M16×P1.5	18	65	6
DIN50	M22×P1.5	35	160	10
DIN60	M30×P1.5	70	450	17

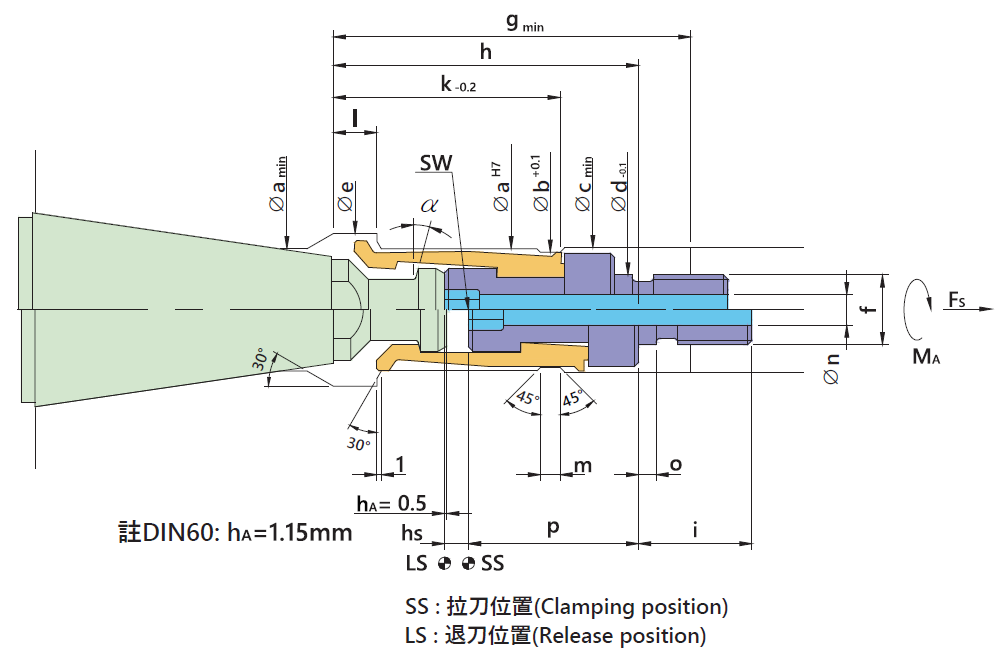

Diagram Reference (Key Dimensions):

• Thread diameter: f

• Assembly stroke: h, k

• Inner cone matching: Øa to Ød

• Actuation stroke zones: SS (Clamping), LS (Release)

• Push angle: α = 15°, standard
