Characteristic

Model : XXRT BT50

XRT BT50 spindle tension meter digital display

Spindle Gripper Force Tester

XXRT50 Specifications

Model	d1	d2	L1	L2	Measuring range	weight kg
BT50-45°	23	17	45	35.2	0~75KN tolerance  ±15N	6.8KG
BT50-60°
BT50-90°
CAT50*45°
CAT50*60°
CAT50*90°
ISO50	29.1	19.6	25.5	17.95
ISO7388-45°
MAZAK-50	29	20.8	25.2	17.56
JIS6339-50	28	21	34	25
DIN50(69872B)-15°	28	21	34	25
SK50-15°

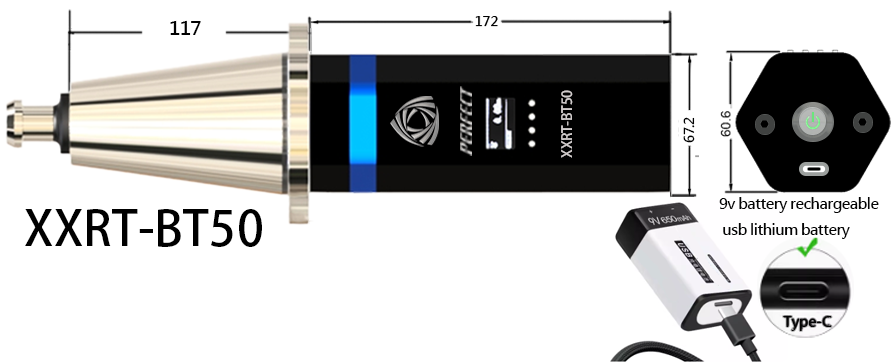

XXRT BT50 Spindle Gripper Force Tester digital display

1KN=1000N  /  1KN=102kgf  / 1 N=10- 1 kgf

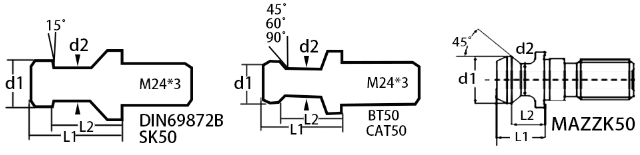

XXRT BT50 you can choose 3 Pull Stud

---

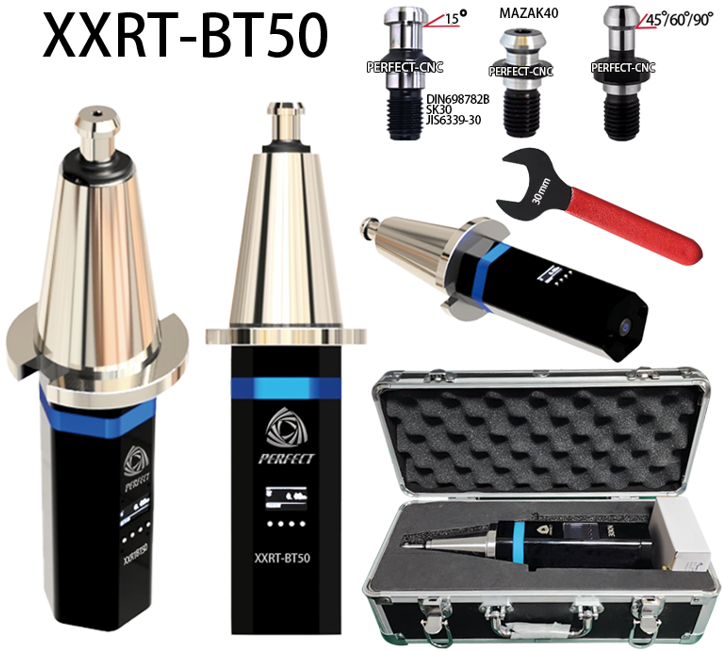

Product image
