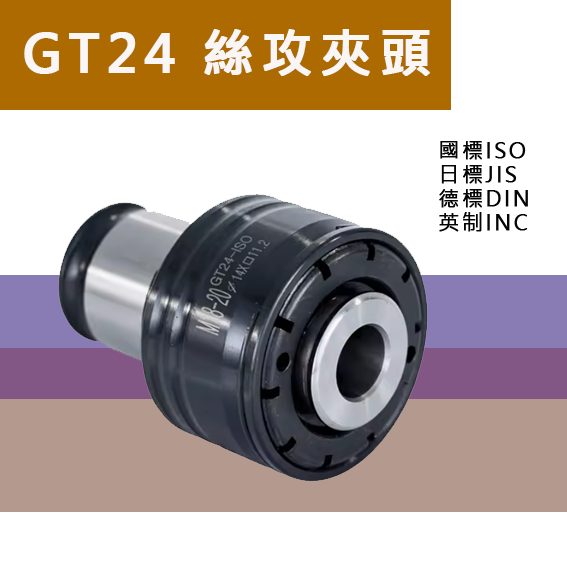

TG24 TG24 扭力絲攻夾頭 Thread tapping chuck
Characteristic
Model : TG24
TG24 Thread tapping chuckTG24 扭力絲攻夾頭 Thread tapping chuck
TG24 Thread tapping chuck
| GT24 規格 | 牌價 | GT24 規格 | 牌價 |
| GT24【ISO國標30柄】-M5 圓5方4 | 2800 | GT24【DIN德標30柄】-M5-6 圓6方4.9 | 3000 |
| GT24【ISO國標30柄】-M6-8 圓6.3方5 | GT24【DIN德標30柄】-M8 圓8方6.2 | ||
| GT24【ISO國標30柄】-M10 圓8方6.3 | GT24【DIN德標30柄】-M10 圓10方8 | ||
| GT24【ISO國標30柄】-M12 圓9方7.1 | GT24【DIN德標30柄】-M12 圓9方7 | ||
| GT24【ISO國標30柄】-M14 圓11.2方9 | GT24【DIN德標30柄】-M14 圓11方9 | ||
| GT24【ISO國標30柄】-M16 圓12.5方10 | GT24【DIN德標30柄】-M16 圓12方9 | ||
| GT24【ISO國標30柄】-M18-20 圓14方11.2 | GT24【DIN德標30】-M18 圓14方11 | ||
| GT24【ISO國標30柄】-M22 圓16方12.5 | GT24【DIN德標-30柄】-M20 圓16方12 | ||
| GT24【ISO國標30柄】-M24 圓18方14 | GT24【DIN德標30柄】-M22-24 圓18方14.5 | ||
| GT24【ISO國標30柄】-M27-30 圓20方16 | GT24【DIN德標30柄】-M30剛性圓22方18 | ||
| GT24【ISO國標30柄】-M33 剛性圓22.4方18 | GT24【DIN德標30柄】-M33剛性圓25方20 | ||
| GT24【ISO國標30柄】-M36剛性圓25方20 | GT24【DIN德標30柄】-M36剛性圓28方22 | ||
| GT24【JIS日標30柄】-M5 圓5.5方4.5 | GT24【INC英制30柄】-5/32 圓5方4 | ||
| GT24【JIS日標30柄】-M6 圓6方4.5 | GT24【INC英制30柄】-3/16 圓5.5方4.5 | ||
| GT24【JIS日標30柄】-M8 圓6.2方5 | GT24【INC英制30柄】-1/4 圓6方4.5 | ||
| GT24【JIS日標30柄】-M10 圓7方5.5 | GT24【INC英制30柄】-5/16 圓6.2方5 | ||
| GT24【JIS日標30柄】-M12 圓8.5方6.5 | GT24【INC英制30柄】-3/8 圓7方5.5 | ||
| GT24【JIS日標30柄】-M14 圓10.5方8 | GT24【INC英制30柄】-1/2 圓9方7.1 | ||
| GT24【JIS日標30柄】-M16 圓12.5方10 | GT24【INC英制30柄】-9/16 圓11.2方9 | ||
| GT24【JIS日標-30柄】M18 圓14方11 | GT24【INC英制30柄】-5/8 圓12.5方10 | ||
| GT24【JIS日標30柄】-M20 圓15方12 | GT24【INC英制30】-3/4 圓14方11.2 | ||
| GT24【JIS日標30柄】-M22 圓17方13 | GT24【INC英制30柄】-7/8 圓16方12.5 | ||
| GT24【JIS日標30柄】-M24 圓19方15 | GT24【INC英制30柄】-PT1/8 圓8方6.3 | ||
| GT24【JIS日標30柄】-M27剛性圓20方15 | GT244【INC英制30柄】-PT1/4 圓11.2方9 | ||
| GT24【JIS日標30柄】-M30剛性圓23方17 | GT248【INC英制31柄】-PT3/8 圓14方11 | ||
| GT24【JIS日標30柄】-M33剛性圓25方19 | GT24【INC英制30柄】-PT1/2 圓18方14 | ||
| GT24【JIS日標30柄】-M36剛性圓28方21 | GT24【INC英制30柄】-PT3/4剛性圓23方17 | ||
| GT24【INC英制-30柄】-PT1剛性圓26方21 |
購買TG24要注意,因有廠商做直徑31跟30mm ,選購前請量接頭尺寸,以免買錯了!
