55HG 55HG Test Bar HSK
Characteristic
Model : 55HG
Taper tightness>85%
Made of alloy steel
HRC56°~58°
Body accuracy: 0.001mm
True roundness:≦0.003

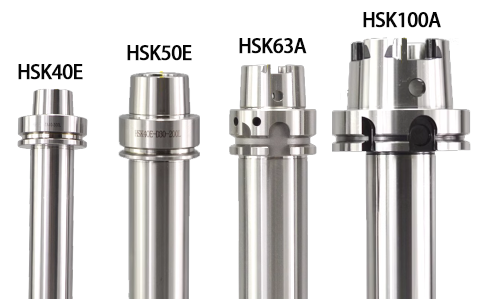

55HG Test Bar HSK
55HG Test Bar HSK

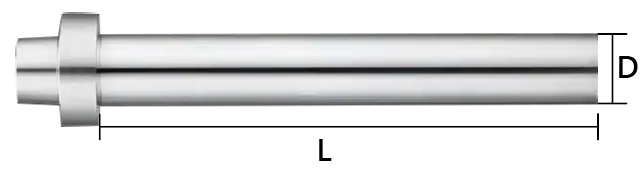

型號 | D | L | 真圓度 | 同心度 | 重量 |
HSK25E | 22 | 100 | ≦0.003 | ≦0.003 | 1.1 |
20 | 150 | 1.2 |
HSK32E | 20 | 180 | 1.2 |
HSK32A | 25 | 200 | 1.2 |
HSK40E | 25 | 200 | 1.8 |
HSK40A/E | 30 | 200 | 1.8 |
32 | 200 | 2.2 |
HSK50E | 30 | 250 | 2.2 |
HSK50A | 32 | 250 | 2.2 |
HSK63A | 40 | 300 | 2.9 |
HSK63F | 40 | 300 | 5.9 |
HSK100A | 40 | 300 | 7 |
