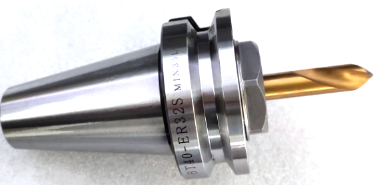

BT-ER interior type chuck holder
Characteristic
Model : BT-ER
ER chuck holder with interior design shorten size of tool shanlinterior type chuck holder
Model No. | D | L | Range | Wrench |
BT30-ER16-45L | 28 | 45 | 1-10 | ER16A |
BT30-ER20-45L | 34 | 45 | 1-10 | ER20A |
BT30-ER25-45L | 42 | 45 | 1-10 | ER25UM |
BT30-ER32-45L | 50 | 45 | 1-10 | ER32UM |
BT40-ER16-50L | 34 | 50 | 1-13 | ER16A |
BT40-ER20-50L | 34 | 50 | 1-13 | ER20A |
BT40-ER25-50L | 42 | 50 | 1-16 | ER25UM |
BT40-ER32-45L | 50 | 45 | 1-10 | ER32UM |
BT40-ER40-50L | 63 | 50 | 3-26 | ER40UM |
| BT50-ER25-70L | 50 | 70 | 1-16 | ER25UM |
BT50-ER32-70L | 50 | 70 | 2-20 | ER32UM |
BT50-ER40-80L | 63 | 80 | 3-26 | ER40UM |
