Characteristic

Model : TT2WNC

Precision Tolerance:<0.02

lathe socket

CNC lathe tool sleeve inner hole turning tool rod reducing sleeve guide sleeve

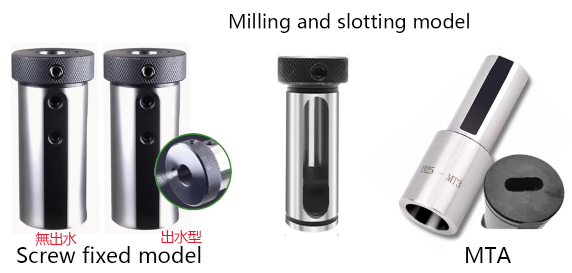

Screw fixed model                      Milling and slotting model                   MTA

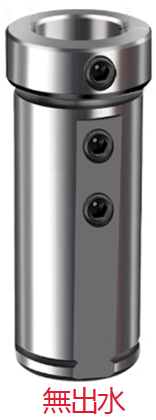

NC  Screw fixed model   No water outlet type	代號	尺寸	代號	尺寸
	TT2WNC2006	NC20-06	TT2WNC4006	NC40-06
	TT2WNC2007	NC20-07	TT2WNC4007	NC40-07
	TT2WNC2008	NC20-08	TT2WNC4008	NC40-08
	TT2WNC2010	NC20-10	TT2WNC4010	NC40-10
	TT2WNC2506	NC25-06	TT2WNC4012	NC40-12
	TT2WNC2507	NC25-07	TT2WNC4013	NC40-13
	TT2WNC2508	NC25-08	TT2WNC4014	NC40-14
	TT2WNC2510	NC25-10	TT2WNC4016	NC40-16
	TT2WNC2512	NC25-12	TT2WNC4018	NC40-18
	TT2WNC2513	NC25-13	TT2WNC4020	NC40-20
	TT2WNC2514	NC25-14	TT2WNC5006	NC50-06
	TT2WNC3206	NC32-06	TT2WNC5007	NC50-07
	TT2WNC3207	NC32-07	TT2WNC5008	NC50-08
	TT2WNC3208	NC32-08	TT2WNC5010	NC50-10
	TT2WNC3210	NC32-10	TT2WNC5012	NC50-12
	TT2WNC3212	NC32-12	TT2WNC5014	NC50-14
	TT2WNC3213	NC32-13	TT2WNC5016	NC50-16
	TT2WNC3214	NC32-14	TT2WNC5018	NC50-18
	TT2WNC3216	NC32-16	TT2WNC5020	NC50-20
			TT2WNC5025	NC50-25

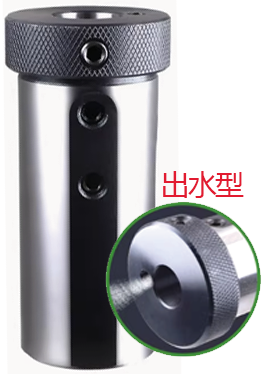

NC  Screw fixed model - Water type	代號	尺寸	代號	尺寸
	TT2WNC2006A	NC20-06A	TT2WNC4006A	NC40-06A
	TT2WNC2007A	NC20-07A	TT2WNC4007A	NC40-07A
	TT2WNC2008A	NC20-08A	TT2WNC4008A	NC40-08A
	TT2WNC2010A	NC20-10A	TT2WNCT4010A	NC40-10A
	TT2WNC2506A	NC25-06A	TT2WNC4012A	NC40-12A
	TT2WNC2507A	NC25-07A	TT2WNC4013A	NC40-13A
	TT2WNC2508A	NC25-08A	TT2WNCT4014A	NC40-14A
	TT2WNC2510A	NC25-10A	TT2WNC4016A	NC40-16A
	TT2WNC2512A	NC25-12A	TT2WNC4018A	NC40-18A
	TT2WNC2513A	NC25-13A	TT2WNC4020A	NC40-20A
	TT2WNC2514A	NC25-14A	TT2WNC5006A	NC50-06A
	TT2WNC3206A	NC32-06A	TT2WNC5007A	NC50-07A
	TT2WNC3207A	NC32-07A	TT2WNC5008A	NC50-08A
	TT2WNC3208A	NC32-08A	TT2WNC5010A	NC50-10A
	TT2WNC3210A	NC32-10A	TT2WNC5012A	NC50-12A
	TT2WNC3212A	NC32-12A	TT2WNC5014A	NC50-14A
	TT2WNCT3213A	NC32-13A	TT2WNC5016A	NC50-16A
	TT2WNC3214A	NC32-14A	TT2WNC5018A	NC50-18A
	TT2WNC3216A	NC32-16A	TT2WNC5020A	NC50-20A
			TT2WNC5025A	NC50-25A

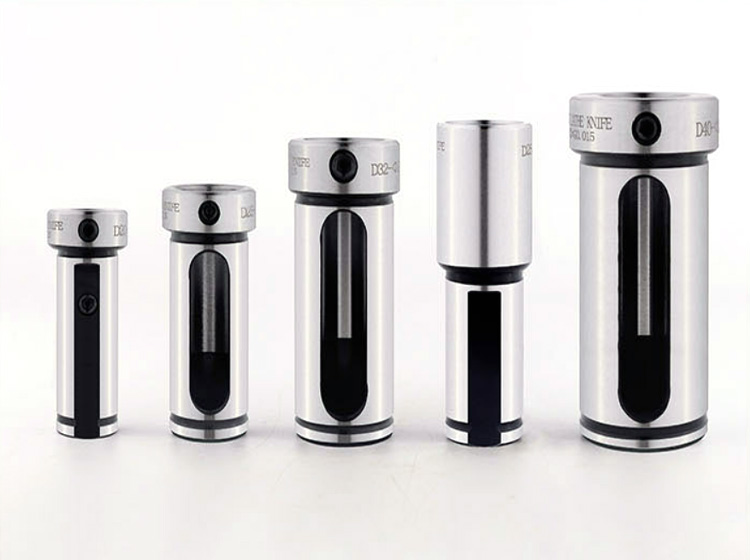

ND  Milling and slotting model	代號	尺寸	代號	尺寸
	TT2WND2006	ND20-12	TT2WND3218	ND32-18
	TT2WND2007	ND20-14	TT2WND3220	ND32-20
	TT2WND2008	ND20-16	TT2WND3225	ND32-25
	TT2WND2516	ND25-16	TT2WND4025	ND40-25
	TT2WND2518	ND25-18	TT2WND4032	ND40-32
	TT2WND2520	ND25-20	TT2WND5032	ND50-32
			TT2WND5040	ND50-40

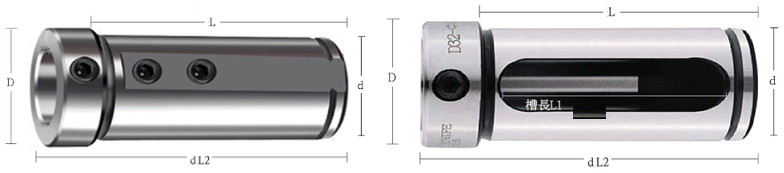

規格	大端直徑D	小端直徑d	總長L	槽長L1	d直徑總長L2
D20	26	20	65	40	53
D25	30	25	70	45	60
D32	36	32	85	55	70
D40	46	40	100	70	85
D50		50	115

NC-MT	code name	尺寸	code name	尺寸
	TT2WNC25MT1	NC25-MTA1	TT2WNC40MT1	NC40-MTA1
	TT2WNC25MT2	NC25-MTA2	TT2WNC40MT2	NC40-MTA2
	TT2WNC25MT3	NC25-MTA3	TT2WNC40MT3	NC40-MTA3
	TT2WNC32MT1	NC32-MTA1	TT2WNC40MT4	NC40-MTA4
	TT2WNC32MT2	NC32-MTA2	TT2WNC50MT1	NC50-MTA1
	TT2WNC32MT3	NC32-MTA3	TT2WNC50MT2	NC50-MTA2
	TT2WNC32MT4	NC32-MTA4	TT2WNC50MT3	NC50-MTA3
			TT2WNC50MT4	NC50-MTA4
