RWY ER milling chuck seat
Characteristic
Model : RWY
ER卡盤/法蘭盤/筒夾座
規格:
80-ER25
80-ER32
100-ER32
80-ER40
100-ER40
ER milling chuck seat
ER铣夾頭座/ER卡盤/法蘭盤/筒夾座
規格:
80-ER25
80-ER32
100-ER32
80-ER40
100-ER40
100-ER32:

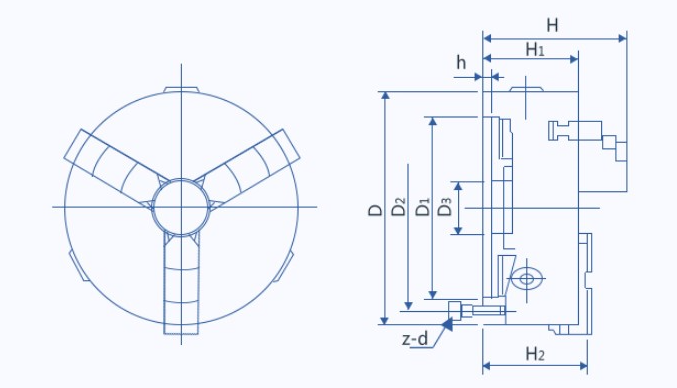

| D | D1 | D2 | D3 | H | H1 | H2 | h | z-d |
| 規格 | 子口 | 螺絲/中心距 | 通孔 | 總厚度 | 盤厚度 | C型厚 | 子口深 | 安裝螺絲 |
| 80 | 55 | 66 | 16 | 66 | 50 |
| 3.5 | 3-M6 |
| 100 | 72 | 84 | 22 | 74.5 | 55 |
| 3.5 | 3-M8 |
