PRODUCTS
CK-S Screw jack
Characteristic
Model : CK-S
Purpose: Height is adjustable for supporting the working piece on tableMaterial: S45C, black oxide furnished
Screw jack
Screw jack
Purpose: Height is adjustable for supporting the working piece on table
Material: S45C, black oxide furnished

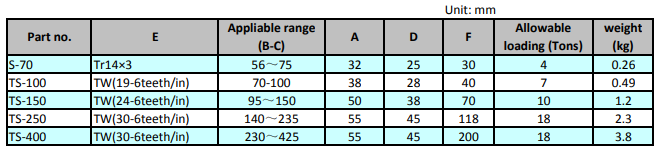

| Order no. | Thread size | Appliable range(mm) | Max. support loading |
| S-70 | Tr14x3 | 56~75 | 3 tons |
| TS-100 | TW(19-6 teeth/in) | 70~100 | 7 tons |
| TS-150 | TW(24-6 teeth/in) | 95~150 | 10 tons |
| TS-250 | TW(30-6 teeth/in) | 140~235 | 18 tons |
| TS-400 | TW(30-6teeth/in) | 230~425 | 18 tons |
