JEVU2 鎢鋼銑牙刀
Characteristic
Model : JEVU2
鎢鋼銑牙刀
鎢鋼銑牙刀(全牙) 公制ISO

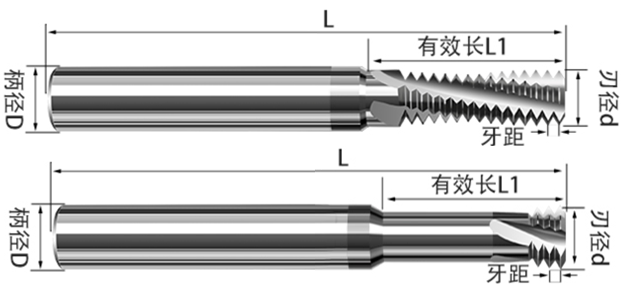

全牙(粗牙) | M | 牙距 | 外徑d | 有效長L1 | 刃數T | 柄徑D | 全長L |
VU20305 | M3 | 0.5 | 2.2 | 6 | 3T | 4 | 50 |
VU20407 | M4 | 0.7 | 3.1 | 8 | 3T | 4 | 50 |
VU20508 | M5 | 0.8 | 4.0 | 10 | 3T | 4 | 60 |
VU20610 | M6 | 1.0 | 4.8 | 12 | 3T | 4 | 60 |
VU20813 | M8 | 1.3 | 6.0 | 16 | 3T | 6 | 60 |
VU21015 | M10 | 1.5 | 8.0 | 21 | 3T | 8 | 75 |
VU21218 | M12 | 1.8 | 10.0 | 24 | 4T | 10 | 75 |
VU21420 | M14 | 2.0 | 10.0 | 28 | 4T | 10 | 83 |
VU21620 | M16 | 2.0 | 12.0 | 33 | 4T | 12 | 83 |
VU21825 | M18 | 2.5 | 13.9 | 40 | 4T | 16 | 92 |
VU22225 | M22 | 2.5 | 13.9 | 40 | 4T | 16 | 92 |
VU22430 | M24 | 3.0 | 15.9 | 42 | 4T | 16 | 92 |
鎢鋼銑牙刀(細牙) 公制ISO
全牙(細牙) | M | 牙距 | 外徑d | 有效長L1 | 刃數T | 柄徑D | 全長L |
VU203505 | M3.5 | 0.50 | 2.2 | 6 | 3T | 4 | 50 |
VU204050 | M4 | 0.50 | 3 | 80 | 3T | 3 | 50 |
VU205050 | M5 | 0.50 | 3.9 | 10 | 3T | 4 | 50 |
VU206075 | M6 | 0.75 | 3.9 | 12 | 3T | 4 | 50 |
VU208100 | M8 | 1.00 | 5.9 | 16 | 3T | 6 | 60 |
VU210100 | M10 | 1.00 | 7.9 | 20 | 3T | 8 | 63 |
VU210125 | M10 | 1.25 | 7.7 | 20 | 3T | 8 | 63 |
VU212100 | M12 | 1.00 | 9.9 | 24 | 4T | 10 | 73 |
VU212150 | M12 | 1.50 | 9.4 | 24 | 4T | 10 | 73 |
VU214150 | M14 | 1.50 | 11.2 | 28.5 | 4T | 12 | 83 |
VU216150 | M16 | 1.50 | 11.9 | 33 | 4T | 12 | 83 |
