55N2R Spindle loose knife
Characteristic
Model : 55N2R
Spindle loose knifeSpindle loose knife

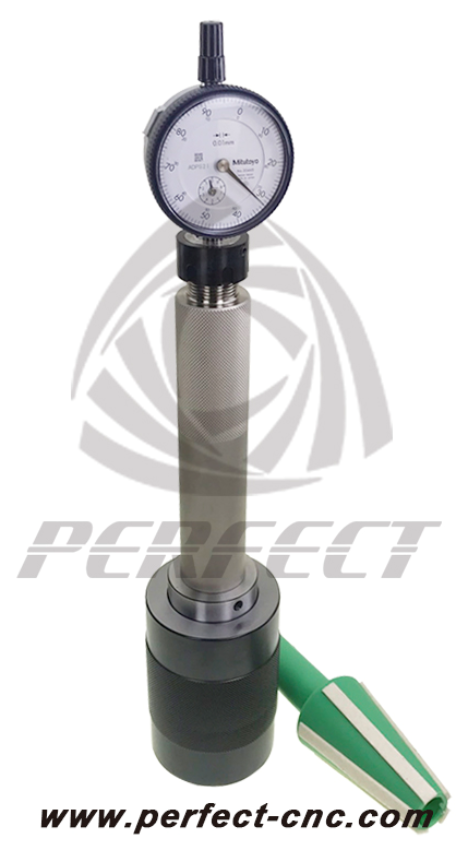

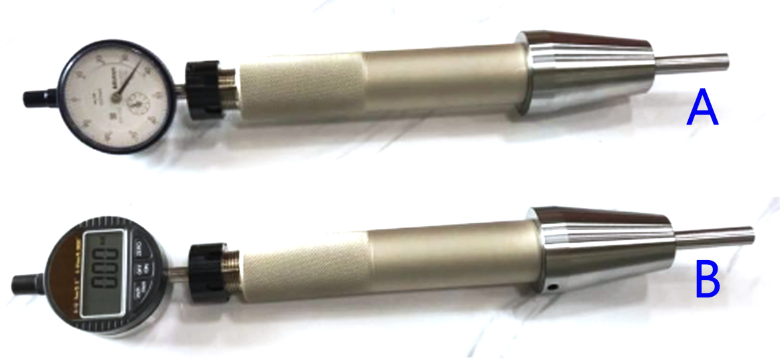

Spindle tool release gauge
| 型號 | 尺寸 | 重量 kg | |
| 55N2R-30 | BT30/DIN30/CAT30 | 3.5 | |
| 55N2R-40 | BT40/DIN40/CAT40 | 4.5 | |
| 55N2R-50 | BT50/DIN40/CAT50 | 6.5 |
| |
規格 | 頂刀量mm |
ISO30 | 0.65 |
ISO40 | 0.65 |
ISO50 | 0.65 |
標準刀桿尺寸
| ||
規格 | A | B |
BT30 | 31.75 | 71.35 |
BT40 | 44.45 | 100.35 |
BT50 | 69.85 | 146.75 |
DIN刀桿尺寸
| ||
規格 | A | B |
DIN30 | 31.75 | 71.65 |
DIN40 | 44.45 | 94.25 |
DIN50 | 69.85 | 135.60 |
CAT刀桿尺寸
| ||
規格 | A | B |
CAT30 | 31.75 | 59.30 |
CAT40 | 44.45 | 84.50 |
CAT50 | 69.85 | 127.0 |
