Characteristic

Model : XXRT-HSK100

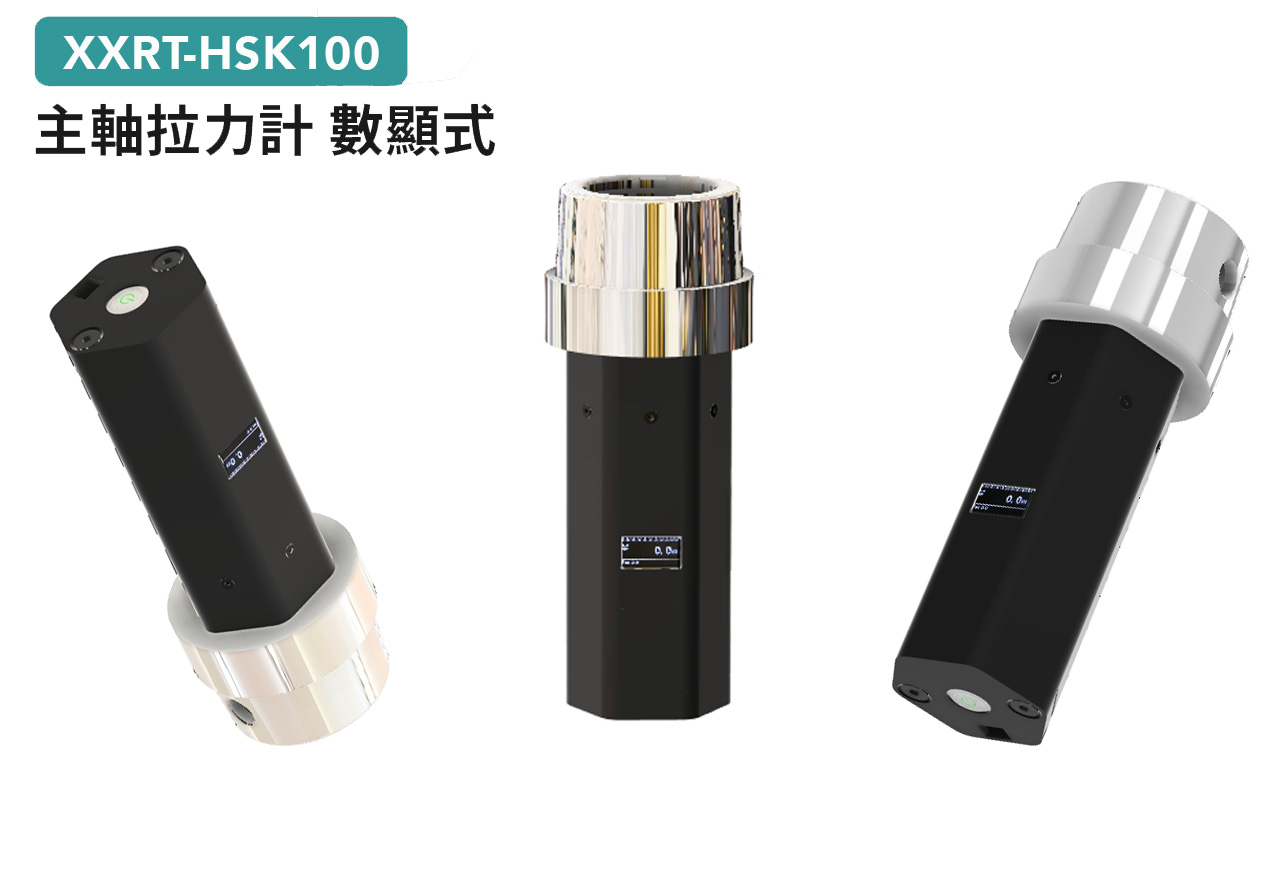

The HSK100A is a precision electronic pull force gauge designed for HSK and BT spindle systems. Equipped with a high-sensitivity sensor and a clear digital OLED screen, it provides real-time measurement of spindle clamping force. USB and TYPE-C dual charging modes ensure ease of use and extended battery life.

Spindle Gripper Force Tester

Why use a pull force gauge?
Insufficient spindle clamping force can lead to unstable machining, abnormal tool wear, and spindle damage. Regular monitoring with a pull force gauge helps to:

• Prevent tool slippage and clamping failure

• Reduce vibration and improve surface finish

• Extend the lifespan of tools and spindles

• Avoid machine failure and accidents

• Ensure consistent performance of CNC machines

Compatible types: HSK40 / HSK50 / HSK63 / HSK80 / HSK100 and BT30 / BT40 / BT50

---

Secure Clamping, Accurate Monitoring

To ensure consistent machining precision and spindle safety, the HSK100A Pull Force Gauge offers real-time detection of spindle clamping force. Insufficient pull force may lead to tool chatter, wear, and machining errors. This product delivers:

• Digital display for quick and accurate readings

• Compatible with HSK and BT tool systems

• High-precision load cell ensures reliable force measurement

• Dual-mode charging via USB and TYPE-C for extended operation

• Durable construction with reset function for easy use

Specifications

XXRT Digital Spindle Gripper Force Tester

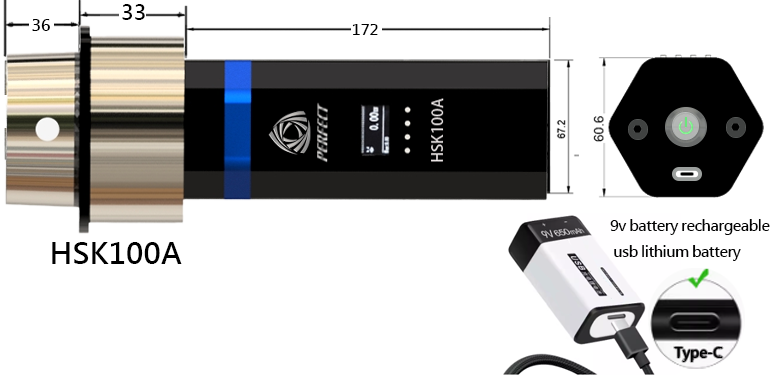

XXRT-TYPE	Clamping force/kN	Max. pulling force/kN	Gross weight/kg
HSK-80	28	75	6
HSK-100A	45	75	7

75KN  tolerances 150N

---

Product instructions

1. 首先，先確認拉力計夾持頭部分是否夾緊，接著按下 電源鍵啟動測量儀器。
2. 當拉力計螢幕顯示為負值或其他數值時， 將開關<關掉再打開>就會歸零。
3. 或你也可以按由左算起第3鍵按reset歸零
4.您可將拉力計放入機台進行操作，它顯示 的數值即為主軸拉力的測量結果
5.按壓電源鍵即可關閉拉力計回原廠設定。
6.請注意：拉力計出廠時已校正完畢，為防測量 失準，請勿按壓螢幕下方左起1  2  4按 鈕。
7.使用9V-USD鋰電池,TYPE-C充電口 充電速度快電池效能持久
