JEVU2 JEVU2 鎢鋼銑牙刀Tungsten steel thread milling cutter
Characteristic
Model : JEVU2

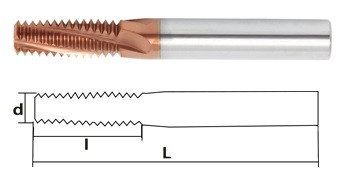

Tungsten steel thread milling cutterJEVU2 鎢鋼銑牙刀Tungsten steel thread milling cutter
M | 牙 | d | I | L | D |
3 | 0.5 | 2.2 | 0.5 | 50 | 4 |
6 | 0.75 | 3.9 | 0.75 | 50 | 4 |
6 | 1.0 | 3.9 | 1.0 | 50 | 4 |
8 | 1.0 | 5.9 | 1.0 | 60 | 6 |
10 | 1.0 | 7.9 | 1.0 | 63 | 8 |
12 | 1.0 | 9.9 | 1.0 | 73 | 10 |
M | 牙 | d | I | L | D |
8 | 1.25 | 5.8 | 1.25 | 60 | 6 |
10 | 1.25 | 7.7 | 1.25 | 63 | 8 |
10 | 1.5 | 7.7 | 1.5 | 63 | 8 |
12 | 1.5 | 9.4 | 1.5 | 73 | 10 |
14 | 1.5 | 11.2 | 1.5 | 83 | 12 |
16 | 1.5 | 11.9 | 1.5 | 83 | 12 |
M | 牙 | d | I | L | D |
12 | 1.8 | 9.5 | 2.0 | 73 | 10 |
14 | 2.0 | 9.9 | 2.0 | 73 | 10 |
16 | 2.0 | 11.9 | 2.5 | 83 | 12 |
18 | 2.5 | 13.9 | 2.5 | 92 | 16 |
20 | 2.5 | 13.9 | 2.5 | 92 | 16 |
22 | 2.5 | 13.9 | 2.5 | 92 | 16 |
24 | 3.0 | 15.9 | 3.0 | 92 | 16 |
以上長度尺寸僅供參考,依實際為主
