EEW Through-hole type Roller burnishing tools
Characteristic
Model : EEW
Burnishing is a cold working process which uses to polish the surface by the pressure of the balls during the spinning.Available to solenoid valve, pneumatic or oil cylinder, bearing motor, bushing or any kind of hole-tumbling.
The surface roughness could be up to Ra 0.4-0.1
Able to burnish the surface without damaging and gaining 30% anti-corrosion.
Through-hole type Roller burnishing tools
Through-hole type EUM

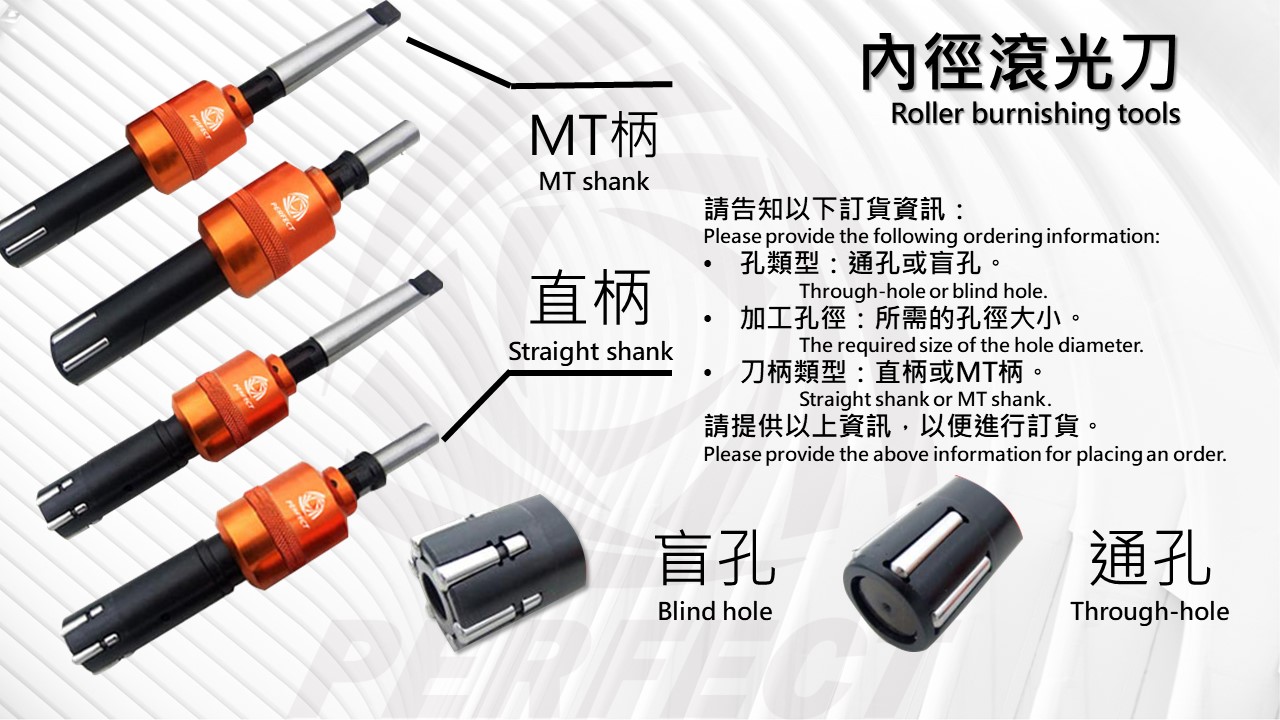

Because all the EEAs and EEWs needs to be customized so please provide the following information before purchasing:
1. The effective depth of a hole
2. Through Hole (TH) / Blind Hole (BH)
3. Taper shank (Morse taper) / straight shank
序號 | (TH) Diameter | Buffer | Diameter and Length of Burnisher | Quantaty of Burnisher | Effective Depth |
1 | 3.5~3.8 | -0.1 +0.1 | 1.2*7.0 | 3 | 40 |
2 | 3.9~4.8 | -0.1 +0.1 | 1.5*10 | 3 | 40 |
3 | 5.0~5.8 | -0.1 +0.1 | 1.5*10 | 4 | 50 |
4 | 5.9~8.8 | -0.1 +0.15 | 2.0*10 | 4 | 50 |
5 | 8.9~11.8 | -0.1 +0.2 | 3.0*15 | 4 | 50 |
6 | 11.9~14.8 | -0.1 +0.25 | 4.0*15 | 4 | 60 |
7 | 14.9~21.8 | -0.1 +0.3 | 5.0*20 | 4 | 60 |
8 | 21.9~25.3 | -0.1 +0.3 | 5.0*20 | 6 | 60 |
9 | 25.4~31.8 | -0.1 +0.3 | 5.0*20 | 6 | 75 |
10 | 31.9~39.8 | -0.1 +0.3 | 5.0*20 | 8 | 75 |
11 | 39.9~47.8 | -0.1 +0.4 | 7.0*20 | 8 | 75 |
12 | 47.9~54.8 | -0.1 +0.4 | 7.0*20 | 8 | 150 |
13 | 54.9~69.8 | -0.1 +0.5 | 10*30 | 8 | 150 |
14 | 69.9~85.8 | -0.1 +0.5 | 10*30 | 10 | 150 |
15 | 85.9~119.8 | -0.1 +005 | 10*30 | 12 | 150 |
16 | 119.9~149.8 | -0.1 +0.5 | 10*30 | 14 | 150 |
17 | 149.9~179.8 | -0.1 +0.5 | 15*38 | 14 | 180 |
18 | 179.9~199.8 | -0.1 +0.7 | 15*38 | 16 | 180 |
19 | 199.9~220.8 | -0.1 +0.7 | 15*38 | 18 | 180 |
Technical Parameters of Roller Knife
Working diameter | 4~5.9 | 6~8.9 | 9~11.9 | 12~14.9 | 15~39.9 | 40~62 | 63 |
Machining allowance | 0.005~0.01 | 0.01~0.02 | 0.01~0.02 | 0.015~0.02 | 0.02~0.03 | 0.025~0.04 | 0.02~0.06 |
Processing length | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Diameter of aluminum shell | 35.5 | 35.5 | 35.5 | 40 | 40 | 45/60 | 45/60 |
Number of Needle Roller | 4 | 4 | 4 | 4 | 4~8 | 6~10 | 8~14 |
Roller Knife speed feedrate
Workpiece diameter | 6.0~14.5 | 15~24 | 25~44 | 45~74 | 75~99 | 100~139 | 140~200 |
Turn/Minute | 1000~700 | 800~500 | 600~500 | 500~300 | 200~80 | 150~50 | 100~40 |
mm/Turn | 0.1~0.4 | 0.2~0.6 | 0.3~1.0 | 0.5~1.5 | 0.6~1.8 | 1.2~3.0 | 1.2~3.0 |
