PRODUCTS
2JF 2JF 2刃heavy cutting blade tungsten steel cutter 2
Characteristic
Model : 2JF
35º heavy cutting blade tungsten steel cutter 2HRC45 following
0.6u, Co12%
Plated ALTIN
2JF 2刃heavy cutting blade tungsten steel cutter 2

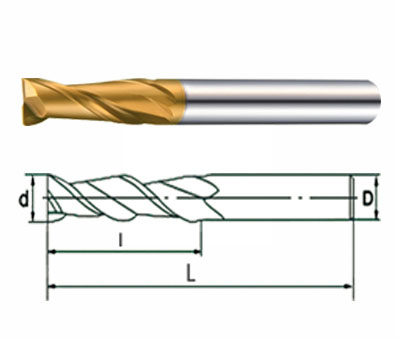

Model | d | l | L | D |
2JF-010504 | 1 | 3 | 50 | 4 |
2JF-015504 | 1.5 | 4 | 50 | 4 |
2JF-020504 | 2 | 6 | 50 | 4 |
2JF-025504 | 2.5 | 7 | 50 | 4 |
2JF-030504 | 3 | 8 | 50 | 4 |
2JF-030504 | 3.5 | 10 | 50 | 4 |
2JF-040504 | 4 | 11 | 50 | 4 |
2JF-010506 | 1 | 3 | 50 | 6 |
2JF-015506 | 1.5 | 4 | 50 | 6 |
2JF-020506 | 2 | 6 | 50 | 6 |
2JF-025506 | 2.5 | 7 | 50 | 6 |
2JF-030506 | 3 | 8 | 50 | 6 |
2JF-030506 | 3.5 | 10 | 50 | 6 |
2JF-040506 | 4 | 11 | 50 | 6 |
2JF-050506 | 5 | 13 | 50 | 6 |
2JF-060506 | 6 | 15 | 50 | 6 |
2JF-070608 | 7 | 18 | 60 | 8 |
2JF-080608 | 8 | 20 | 60 | 8 |
2JF-0907510 | 9 | 23 | 75 | 10 |
2JF-1007510 | 10 | 25 | 75 | 10 |
2JF-1107512 | 11 | 28 | 75 | 12 |
2JF-1207512 | 12 | 30 | 75 | 12 |
2JF-1307516 | 13 | 35 | 75 | 16 |
2JF-1410016 | 14 | 40 | 100 | 16 |
2JF-1510016 | 15 | 40 | 100 | 16 |
2JF-1610016 | 16 | 45 | 100 | 16 |
2JF-1810020 | 18 | 45 | 100 | 20 |
2JF-2010020 | 20 | 45 | 100 | 20 |
