Characteristic

Model : HVY

A magnetic Base, also known as a magnetic holder, is a fixed device that utilizes magnetism to adhere to metal surfaces with good magnetic conductivity. It is widely used as a tool holder and is often used in conjunction with measuring instruments such as dial indicators, micrometers, protractors, and more. It can be quickly secured to a machine tool or any location attracted by magnets, whether flat or curved.

Magnetic base come in various specifications, including arm length, arm diameter, magnetic attraction strength, and fixture holding force, and they can be activated or deactivated with a simple ON and OFF interface to enable or disable the magnetic holding function.

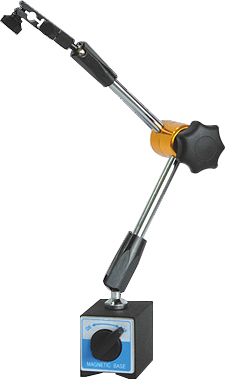

Mechanical Universal Magnetic Base

Mechanical Universal Magnetic Base

MODEL	Magnetic force	Base(LxWxH)	Tapped hole
HVY-30	30/KG	30*40*18/mm	M5*0.8
HVY-60	60KG	50*60*29/mm	M8*1.25
HVY-80	80KG	50*60*34/mm	M8*1.25

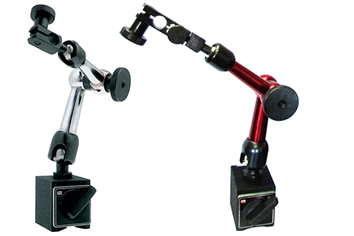

        HVY-30  (Mini type)



                 HVY-60



                  HVY-80
