Characteristic

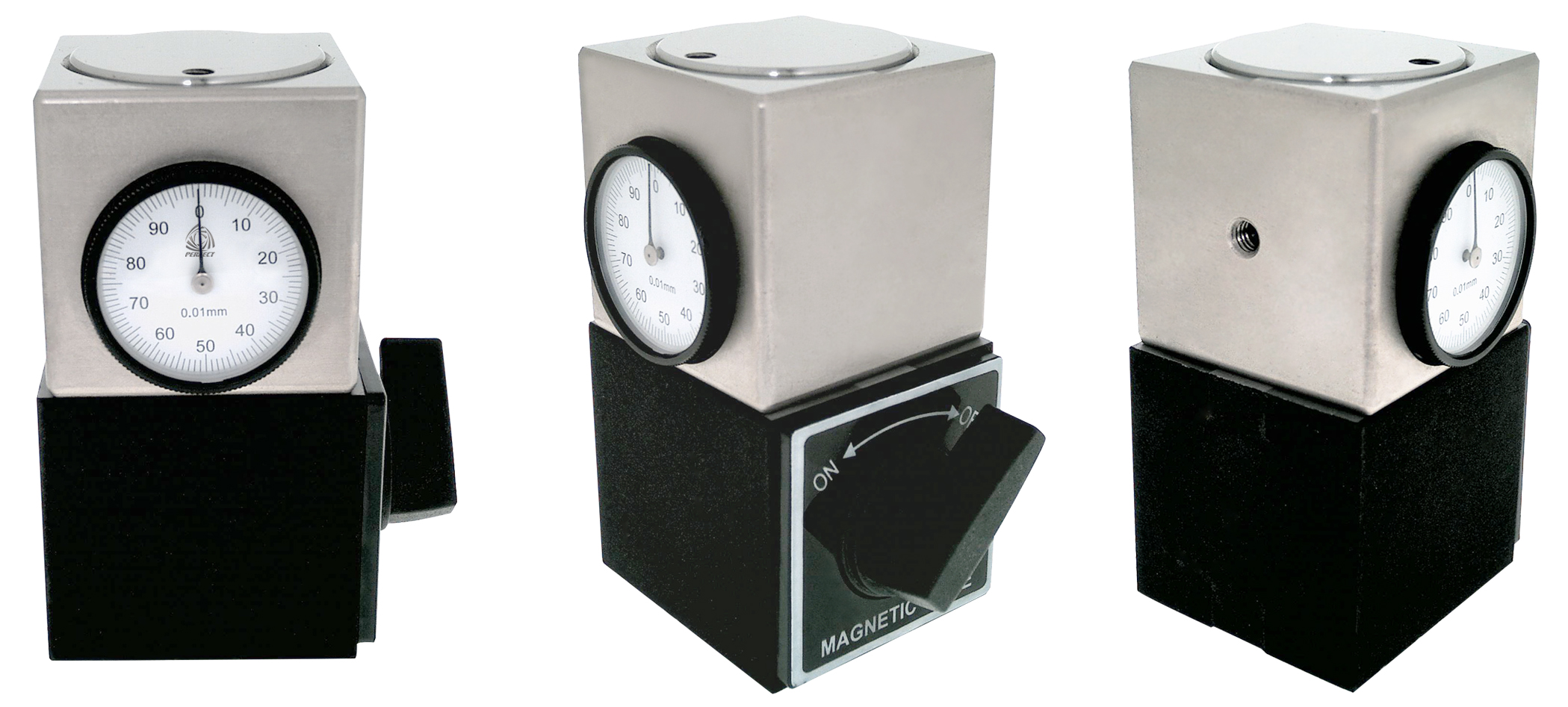

Model : NZD-100

Cnc Machine Tool Setter
FEATURES:
1.computer milling / lathe set the knife long with.
2.Measuring height: 100.00 ± 0.005mm.
3. small spring force to avoid small cutter or drill fracture.
4. Ground parallel plate can be easily set.
5. The available hex wrench to adjust the measured height
6. Available hex wrench to adjust the pointer to zero
7. new Z-axis setter factory has correction setting is completed .
Under the knife stroke is 0.01mm customers to use more convenient

Z Axis Setter

CNC milling machine to set the height of Use: Z-axis settings

TPYE	HEIGHT	WEIGHT KGS	LxWxUNIT:mm	MAGNETISM
NZD-100	100.00   /±0.005mm	1.75kgs	100x62x50/mm	Have magnetic
