Model : BT/EOC(OZ)
OZ collet chuck can clamp drill , end mills and taps.

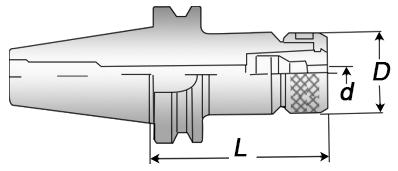

OZ(EOC) / Order no |
Rdnge ∮ d |
D |
Weight(kg) |
BT40-OZ25-80L |
3~25 |
60 |
1.7 |
BT40-OZ25-120L |
3~25 |
60 |
2.6 |
BT40-OZ32-80L |
6~32 |
72 |
2.1 |
BT50-OZ25-100L |
3~25 |
60 |
4.6 |
BT50-OZ32-100L |
6~32 |
72 |
5.4 |

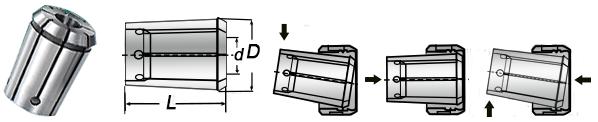

Collet chuck / Order no |
d |
L |
Weight(kg) |
OZ25- 1/8 3 ~ 20 |
3~25 |
52 |
0.17 |
OZ32- 1/8 3 ~ 32 |
6~32 |
60 |
0.36 |

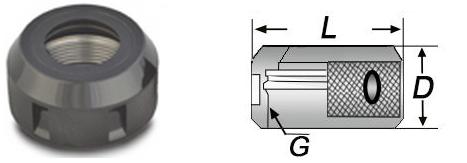

Nut / Order no |
D |
L |
G |
Weight(kg) |
N-OZ25 |
60 |
30 |
M48x2.0p |
0.30 |
N-OZ32 |
78 |
30 |
M60x2.5p |
0.65 |

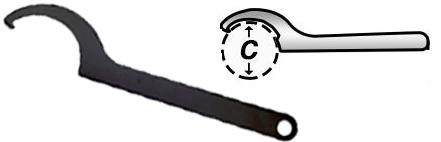

Wrench / Order no |
C |
Weight(kg) |
W-OZ25 |
60 |
0.30 |
W-OZ32 |
78 |
0.45 |
Wrench must be ordered separately.
