Characteristic

Model : ZOP-50

Cnc Machine, Tool Setter
1.For setting length on machining centers/lathe centers
2.Setting height : 50.00mm。
3.Large measuring surface and easy to operate;
4.Low sprang force,May avoid the milling cutter or the drill bit break.
5.Easy to be calibrated by a ground parallel or gauge block;
6.Better parallelism,sensitivity,and precision for use.

Z Axis Setter photoelectric



Z Axis Setter photoelectric

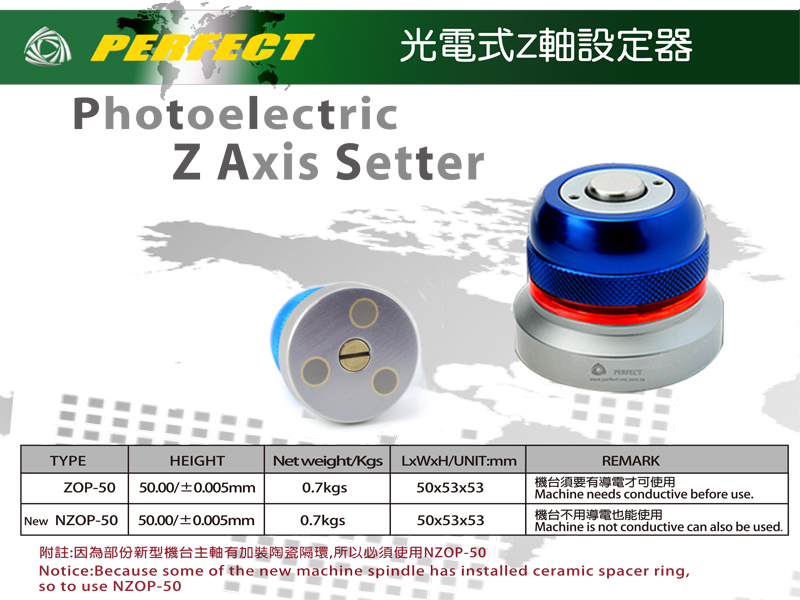

TYPE	HEIGHT	weight/Kgs	HxW/UNIT:mm	Bottom have agnetic	ACCURACY	Remark
ZOP-50	50.00mm	0.7kgs	50x53	o	±0.005	Machine needs conductive before use.
New  NZOP-50	50.00mm	0.7kgs	50x53	o	±0.005	Machine is not conductive can also be used.

Because some of the new machine spindle has installed ceramic spacer ring, so to use NZOP

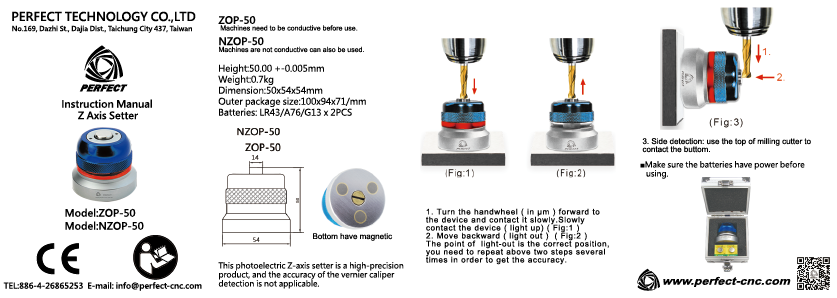

 Z Axis Setter photoelectric Usage:

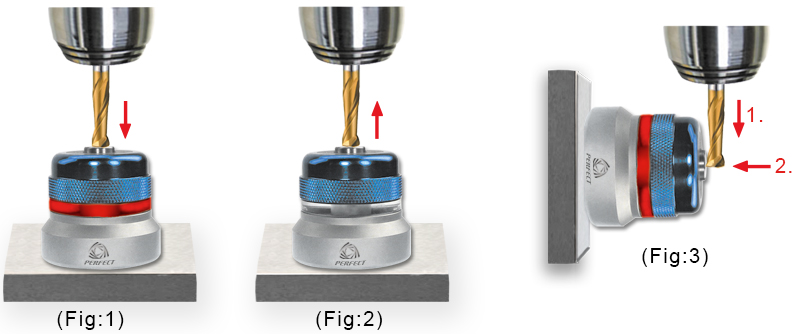

1. Turn the handwheel ( in μm ) forward to the device and contact it slowly.

Slowly contact the device ( light up) ( Fig.: 1. )

Move backward ( light out )  ( Fig.: 2. )

The point of  light-out is the correct position, you need to repeat above two steps several times in order to get the accuracy

2. Side detection: use the top of milling cutter to contact the buttom.



3.This photoelectric Z-axis setter is a high-precision product, and the accuracy of the vernier

    caliper detection is not applicable.

4.When the red light can be seen and without blind spots.

5.Make sure the batteries have power before using.

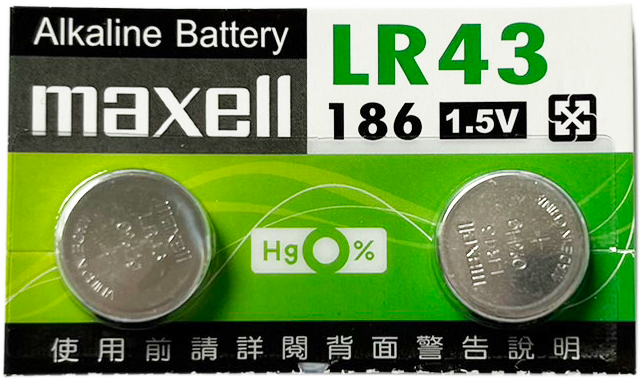

6.Battery:. LR43/A76/G13x2 pieces
