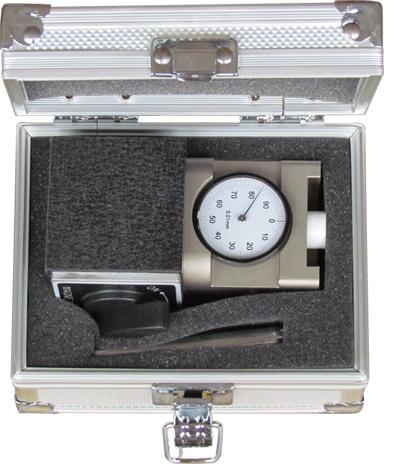

ZDE-100 Z Axis Setter

Characteristic

Model : ZDE-100

CNC milling machine to set the height of Use: dedicated micro Z-axis settings

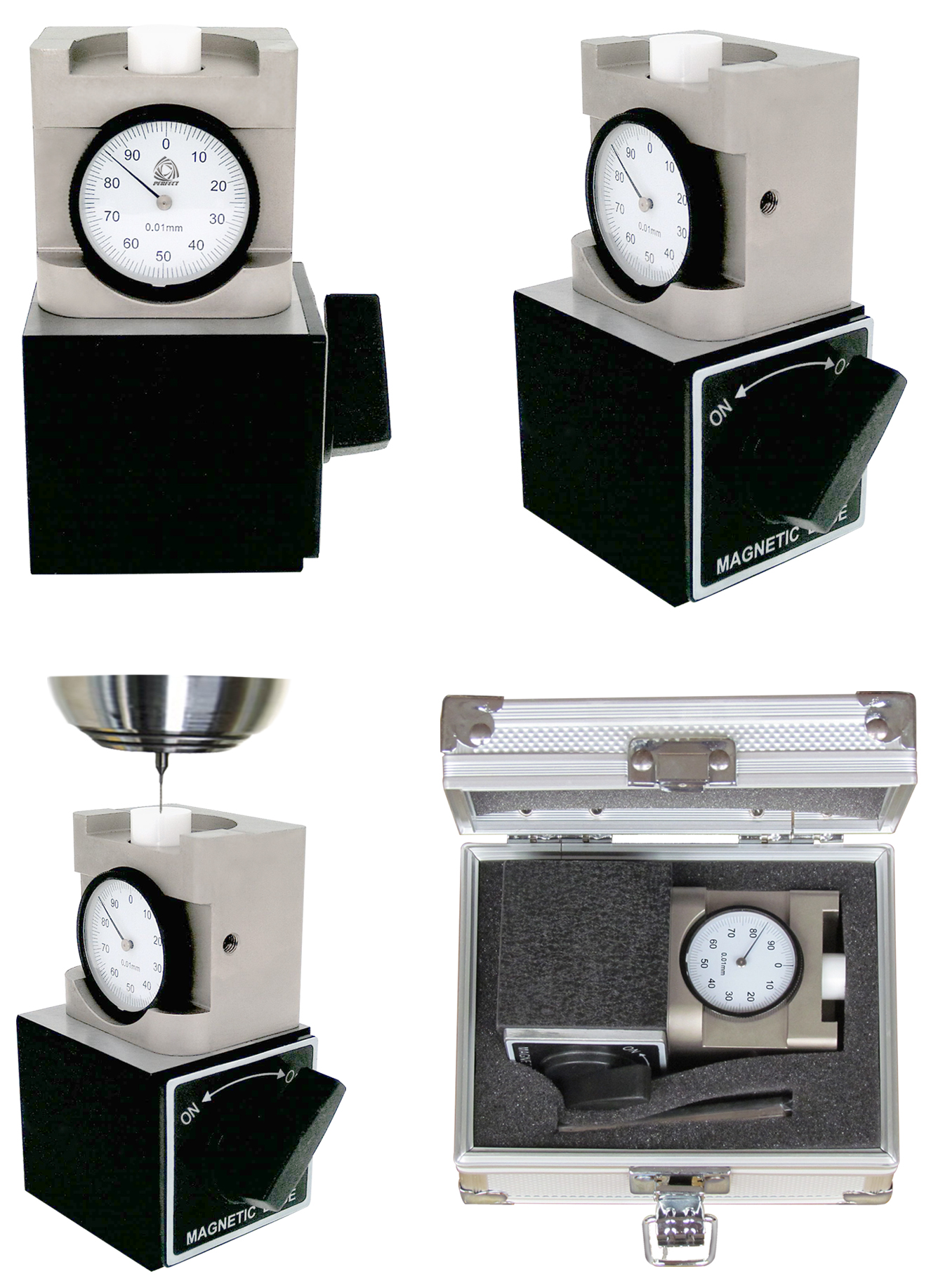

FEATURES:
CNC milling machine to set the height of Use: dedicated micro Z-axis settings
1.computer milling / lathe set the knife long with.
2.Measuring height: 100.00 ± 0.005mm.
3.Small spring force to avoid small cutter or drill fracture.
4.Ground parallel plate can be easily set.
5.Fit use0.05mm cutter
6.Ceramic (zirconia) probe

Z Axis Setter

CNC Machine Tool Setter (Z Axis Setter)

TYPE

HEIGHT

G.W.WEIGHT KGS

LxWxH/UNIT:mm

Magnetism

 NDE-100

100.00 / ±0.005mm

1.7kgs

100x50x50

O



                    ZDE-100 Suitable 0.05mm tiny cutter dedicated

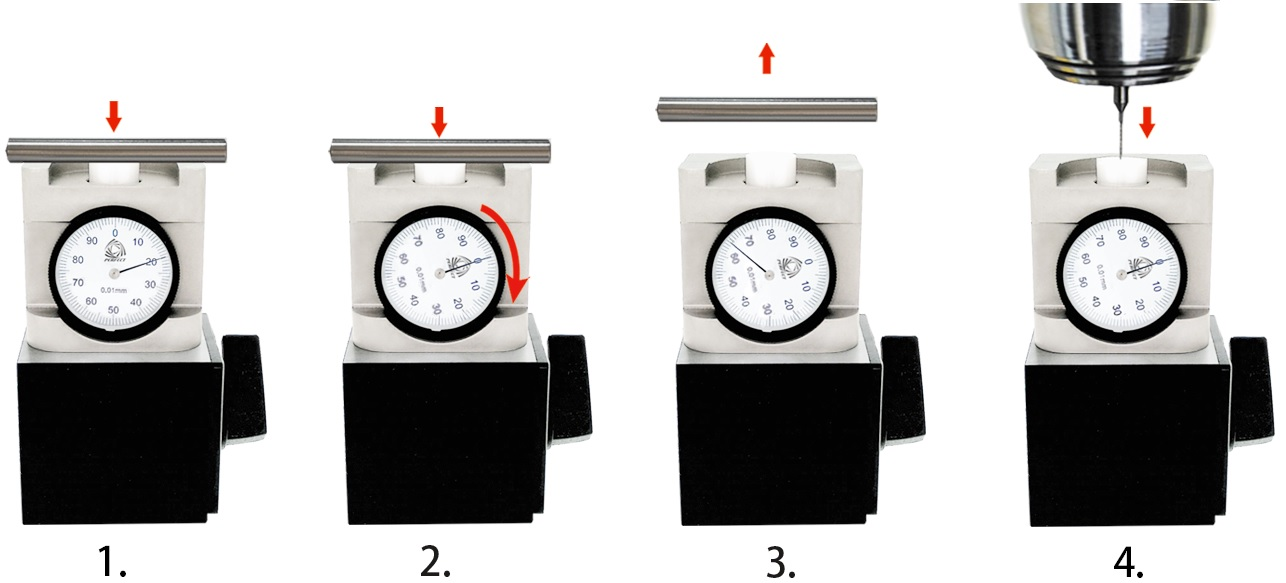

ZDE-100 new Z-axis setter adjustment method

1.Pressing parallel block on the standard plane.

2.Turn the dial indicator and make zero return to the pointer position.

3 Take away parallel block.

4.Put Z Axis Setter on the workpiece and make the cutter tool going slowly reach Position 0 is 100mm.
